Among the AMD B650 chipset series, the B650E chipset stands out for its full support of PCIe 5.0, allowing users to leverage the latest technology without a hefty price tag. It pairs excellently with the Ryzen 7000 series CPUs and fully supports high-performance processors like the 9800X3D.
The newly released ASUS TUF Gaming B650EM-E WIFI by Daewon CTS features an 8+2+1 phase power design with 80A power delivery per phase. Impressively, it supports PCIe 5.0 without lane sharing, even among B650E motherboards. It also supports WiFi 6 and Bluetooth, all at a reasonable price of under 200,000 KRW, earning it a reputation as a cost-effective mid-range option. Let’s delve into the detailed features and performance of this motherboard.
Specifications and Configuration
The ASUS TUF Gaming B650EM-E WIFI is a motherboard in the mATX form factor that supports the AMD AM5 socket. Based on the B650E chipset, it offers broad CPU compatibility from the Ryzen 7000 series to the latest 9000 series.
The standout feature of the B650E chipset is its support for PCIe 5.0 without PCIe lane sharing, allowing simultaneous optimal performance for both graphics cards and M.2 SSDs. It supports DDR5 memory and fully utilizes high-clock memory performance through AMD EXPO profiles. Additionally, it uses military-grade components to ensure stable performance during extended gaming sessions.

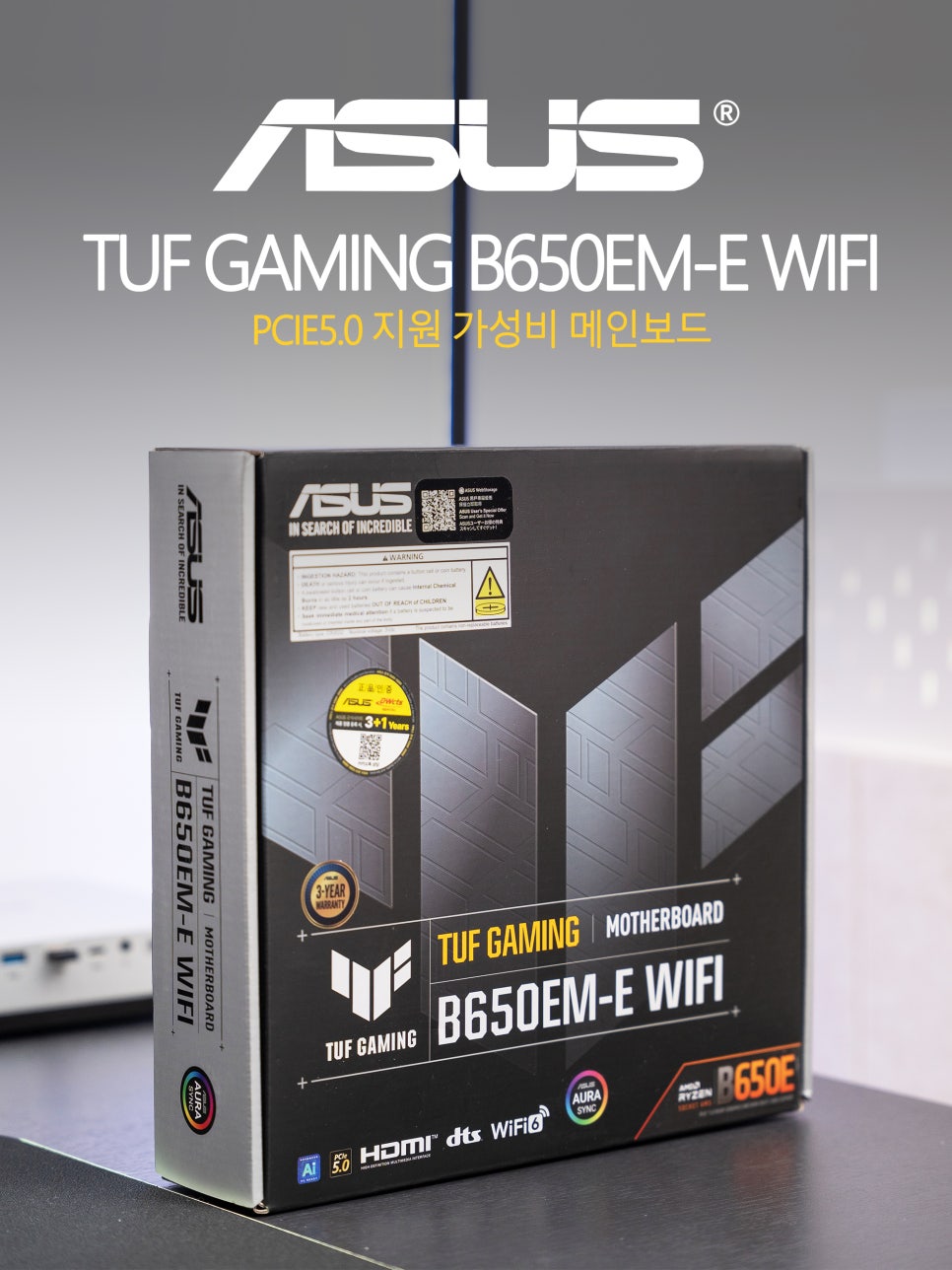

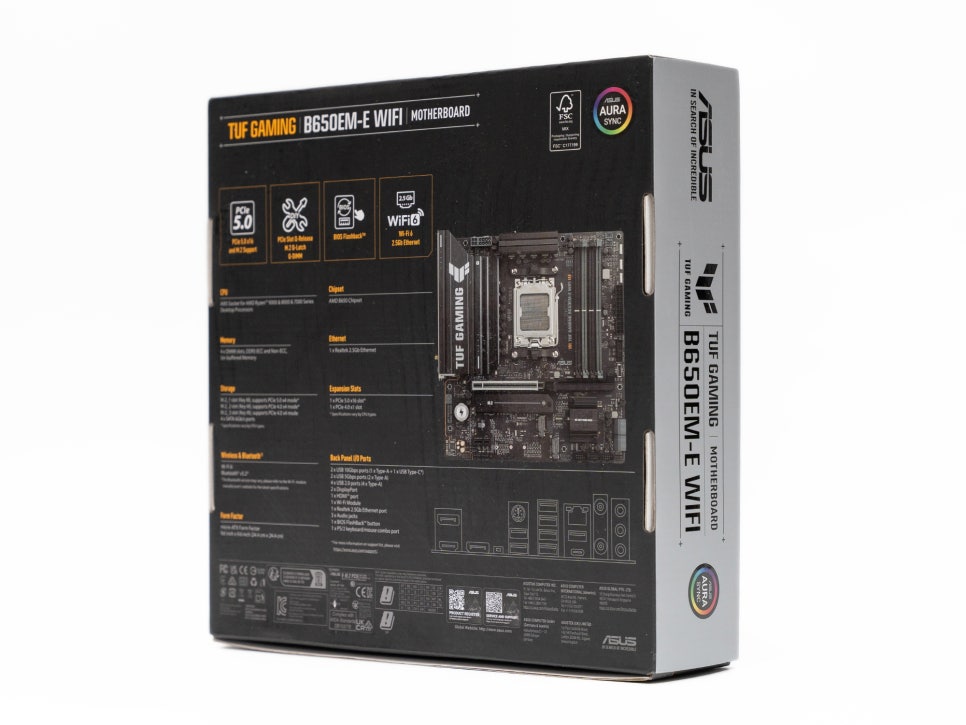

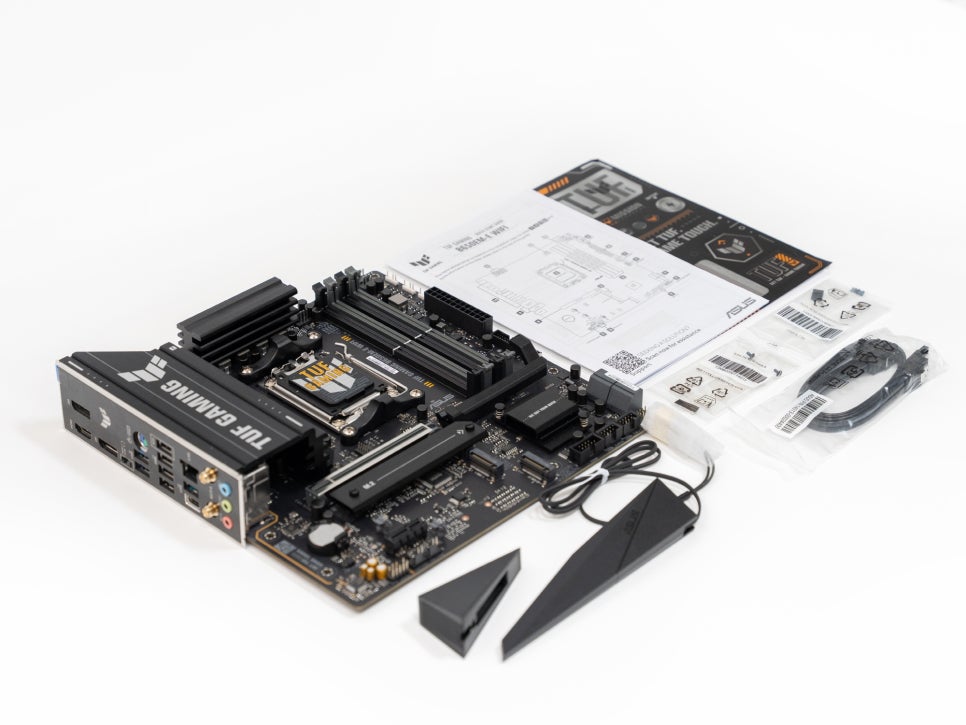

The ASUS TUF Gaming B650EM-E WIFI package includes the motherboard itself, two SATA cables, an M.2 SSD screw package, an M.2 rubber package, a TUF Gaming sticker, a quick start guide, and a WiFi antenna.
Appearance and Features

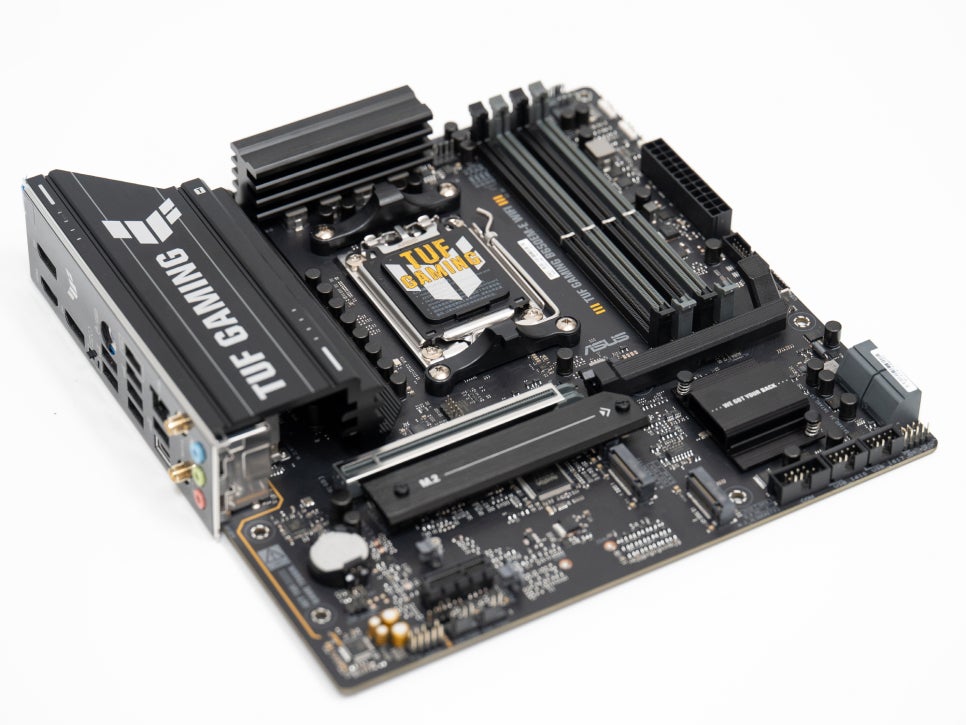

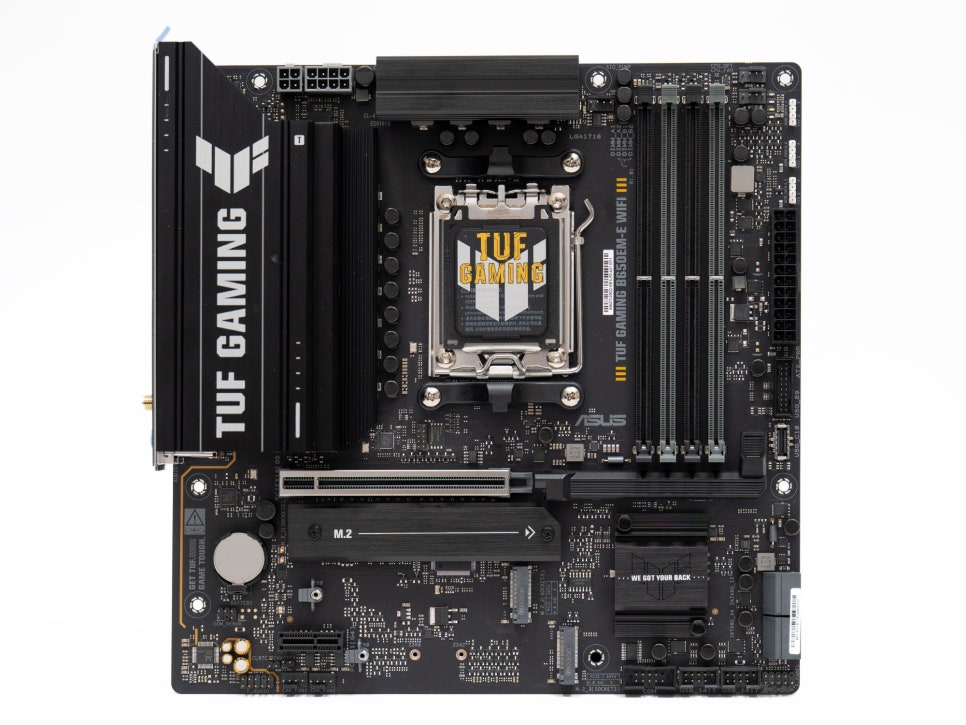

The ASUS TUF Gaming B650EM-E WIFI boasts a compact size of 24.4 x 24.4 cm, thanks to its mATX form factor. It can be installed in standard ATX cases as well as smaller cases, allowing for a compact gaming PC setup.

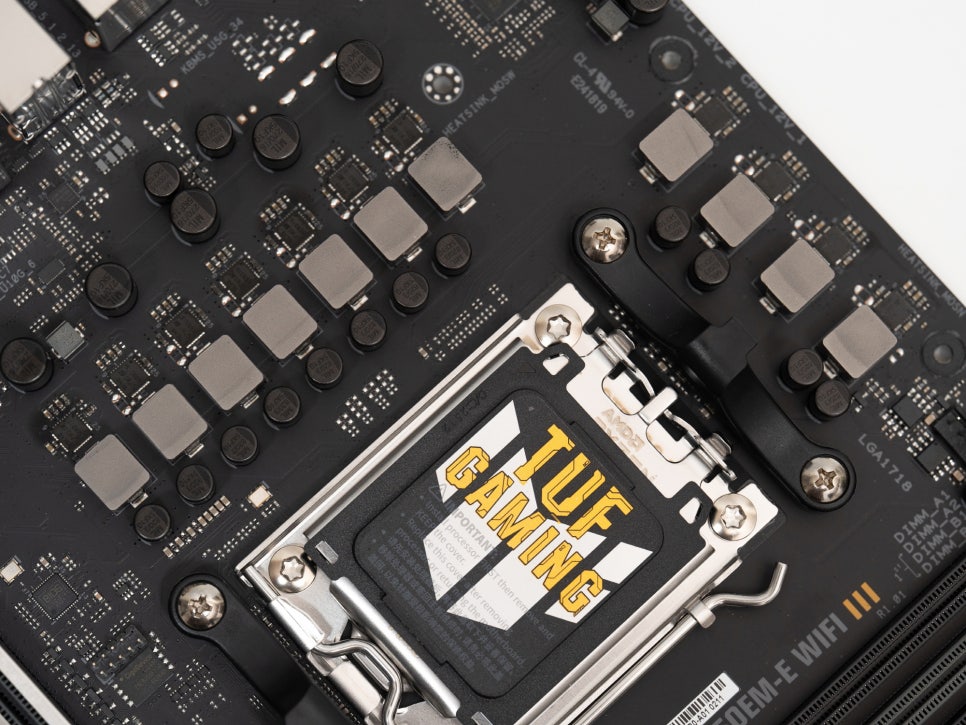

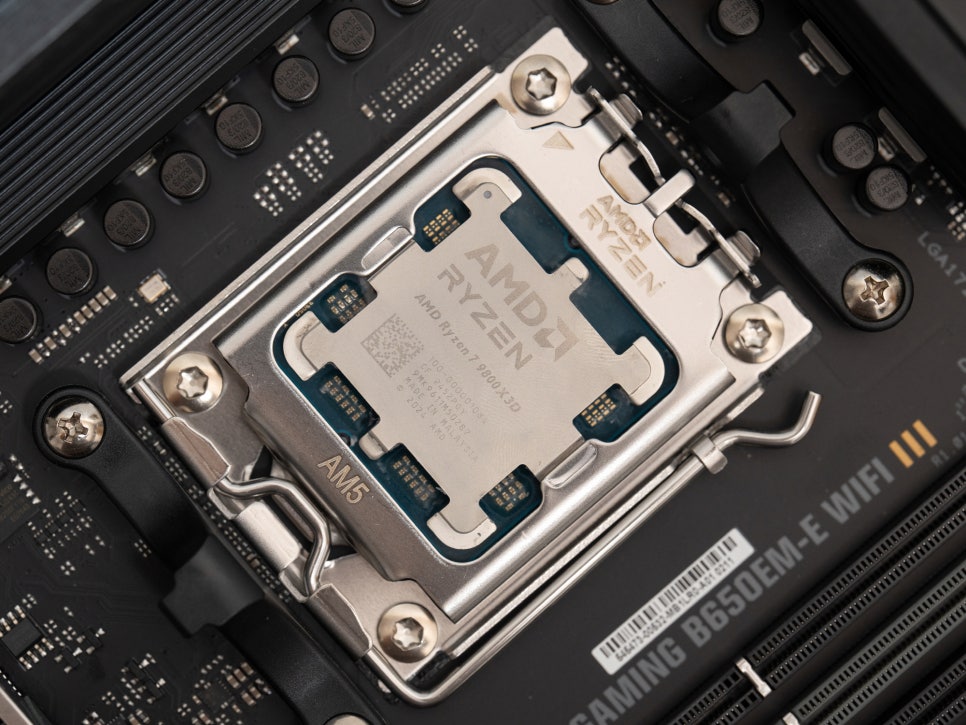

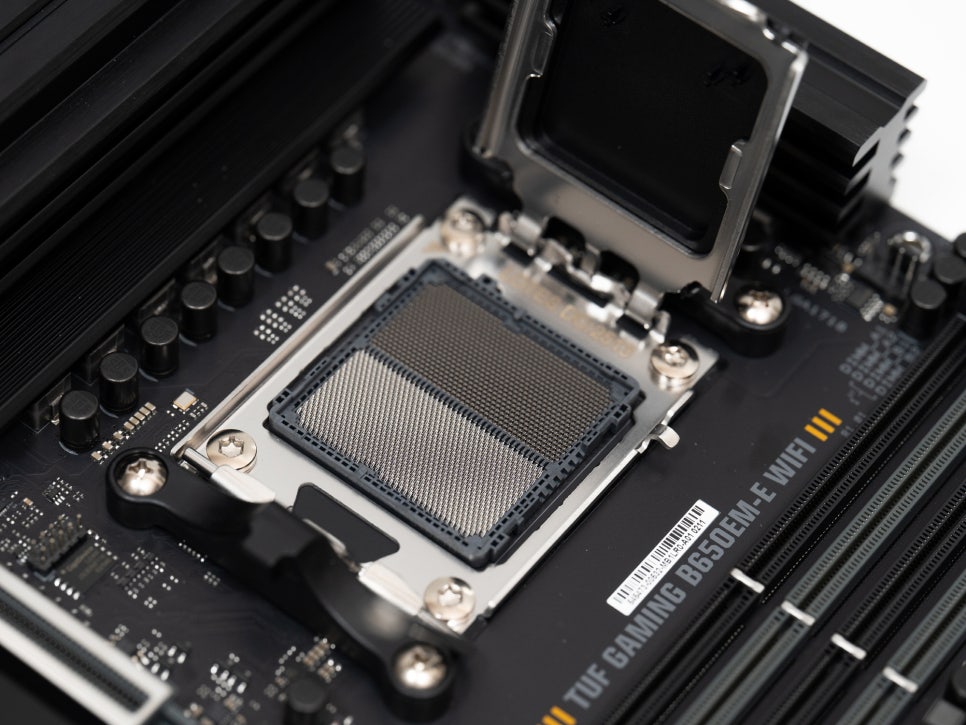

The AM5 socket is AMD’s latest CPU socket, supporting processors from the 7000 series to the 9000 series. There is ample space around the socket, allowing for the installation of large CPU coolers without restrictions.

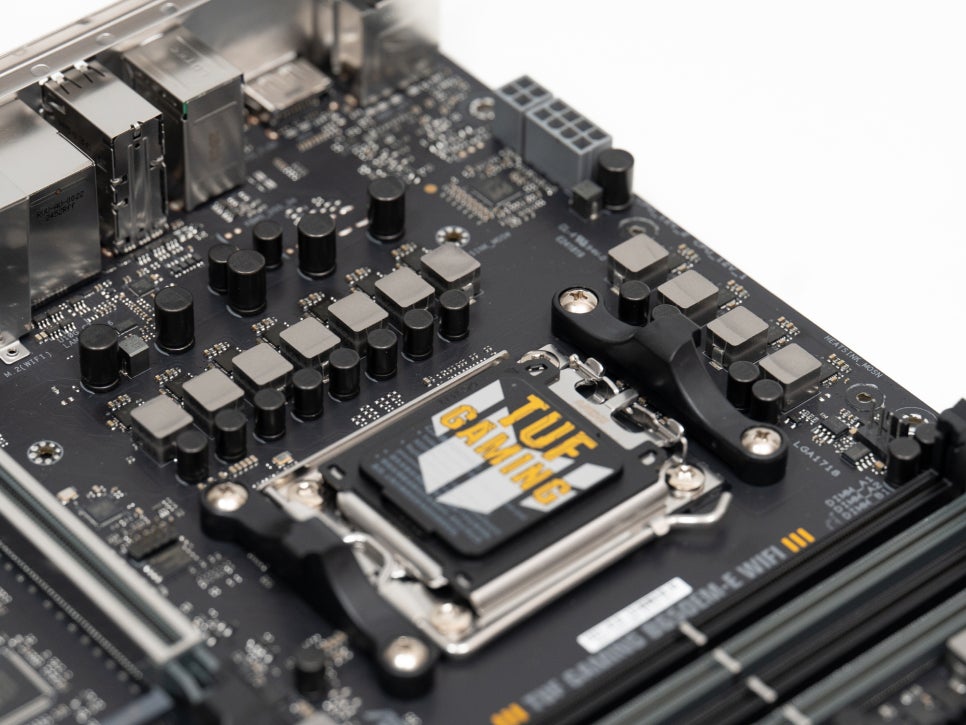

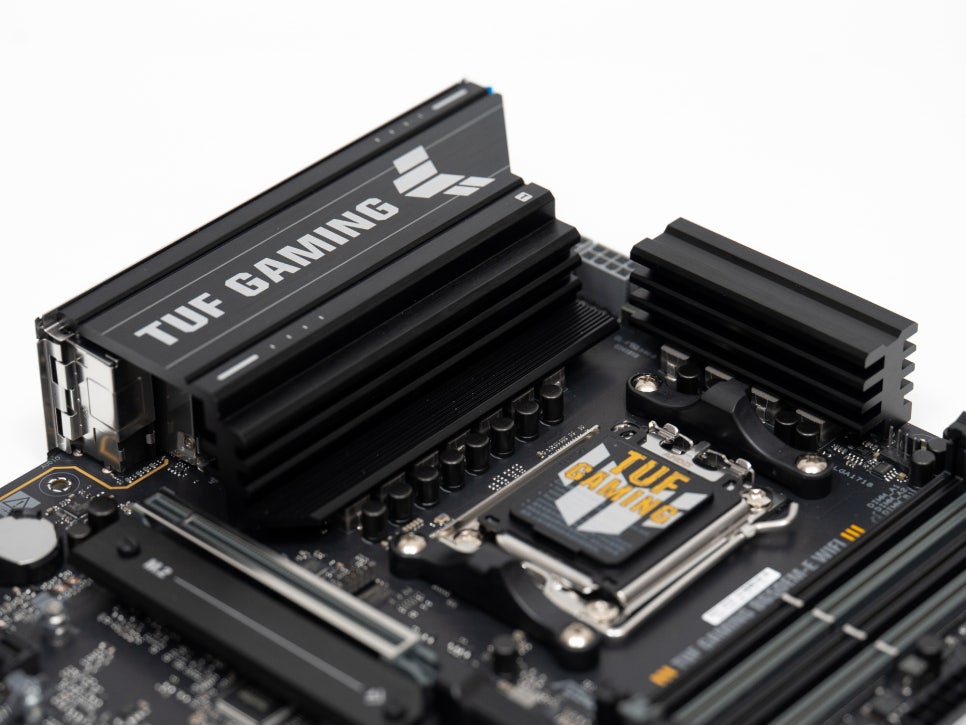

The DrMOS power stage with an 8+2+1 phase design and 80A power delivery per phase can stably drive high-performance CPUs. A large aluminum heatsink is mounted on top of the power stage to effectively manage VRM temperatures.
The ProCool power connector is an ASUS proprietary technology, designed with more precise specifications than standard power connectors, ensuring complete contact with PSU cables for stable power delivery.

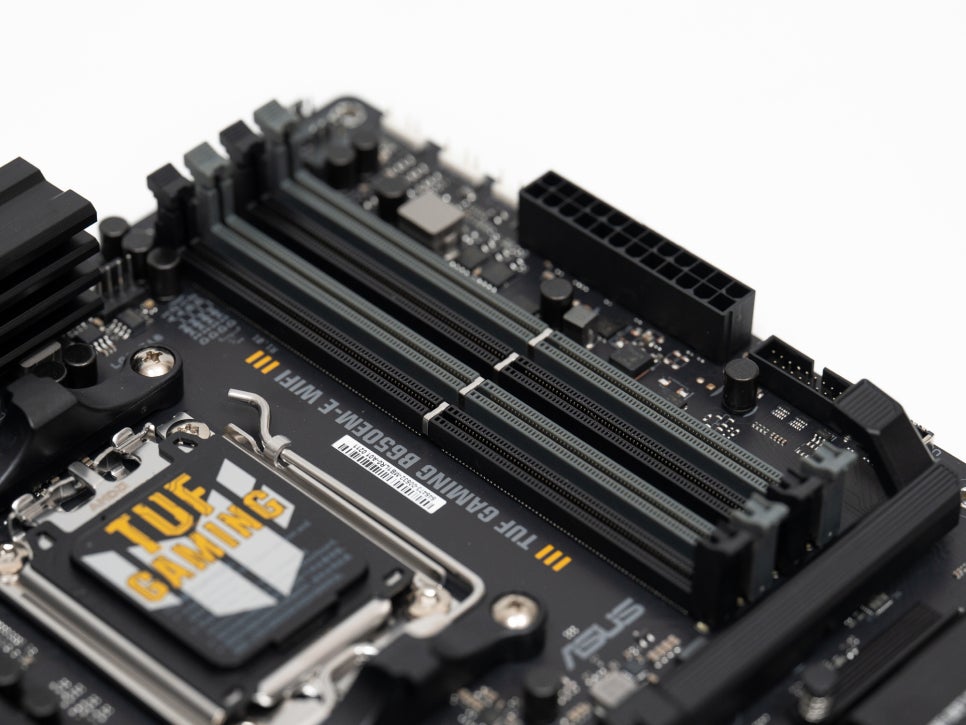

It offers four DDR5 DIMM slots, allowing memory expansion up to 256GB. With support for AMD EXPO profiles, you can easily load overclock profiles for high-performance gaming memory. It supports up to 8000MHz (OC) clock speeds, and the memory slots feature SafeDIMM technology to prevent damage during memory installation.

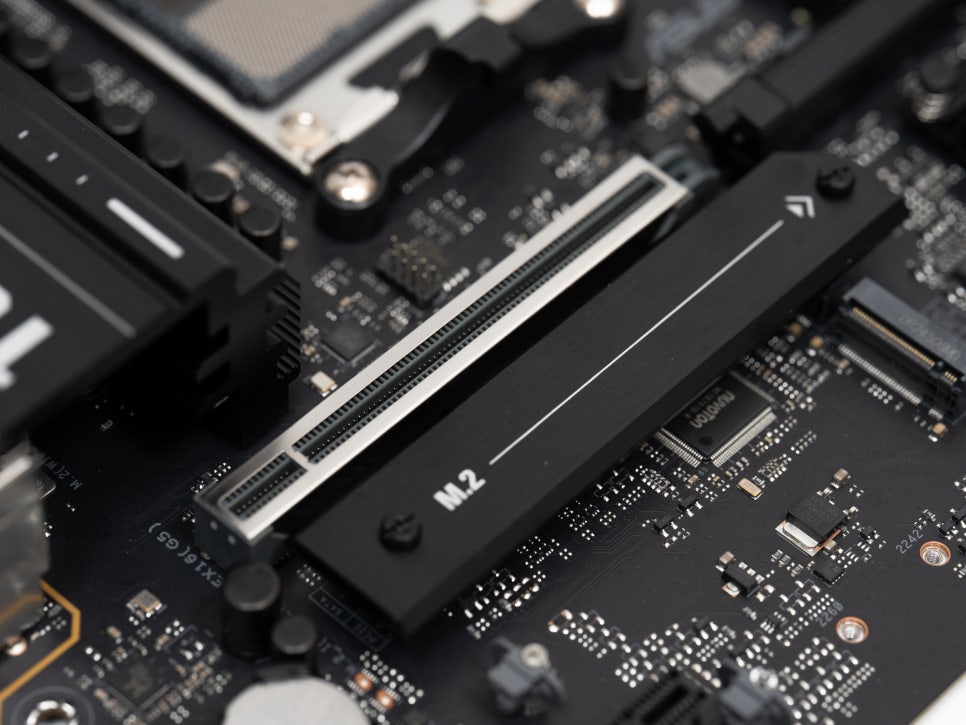

It provides one PCIe 5.0 x16 slot, equipped with SafeSlot Core+ technology to securely support heavy graphics cards. The PCIe Slot Q-Release feature allows for easy removal of graphics cards without tools, facilitating convenient maintenance.

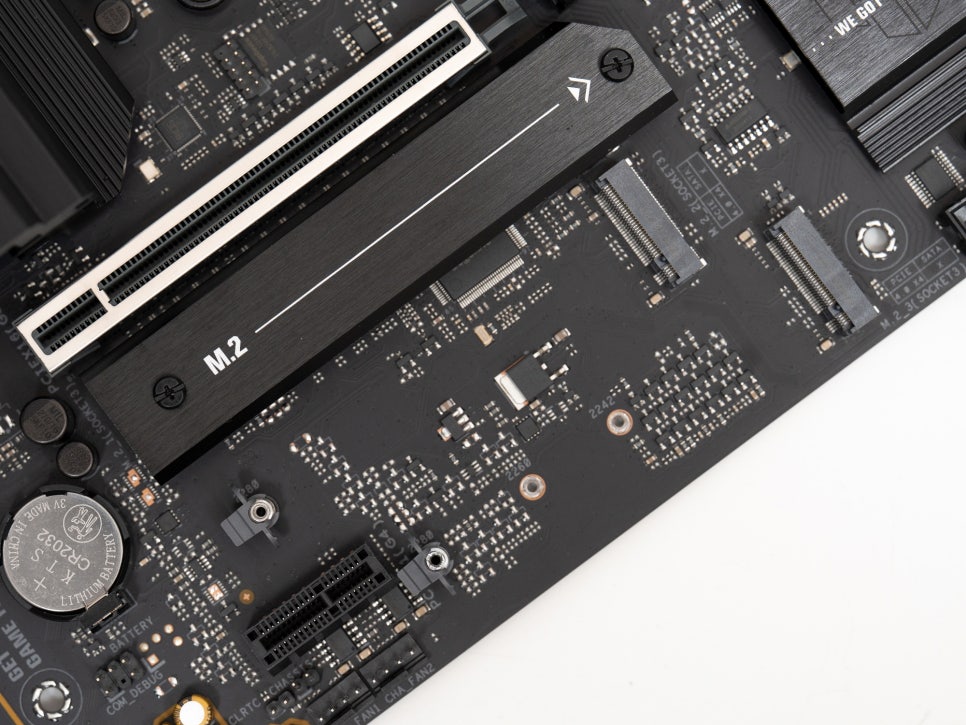

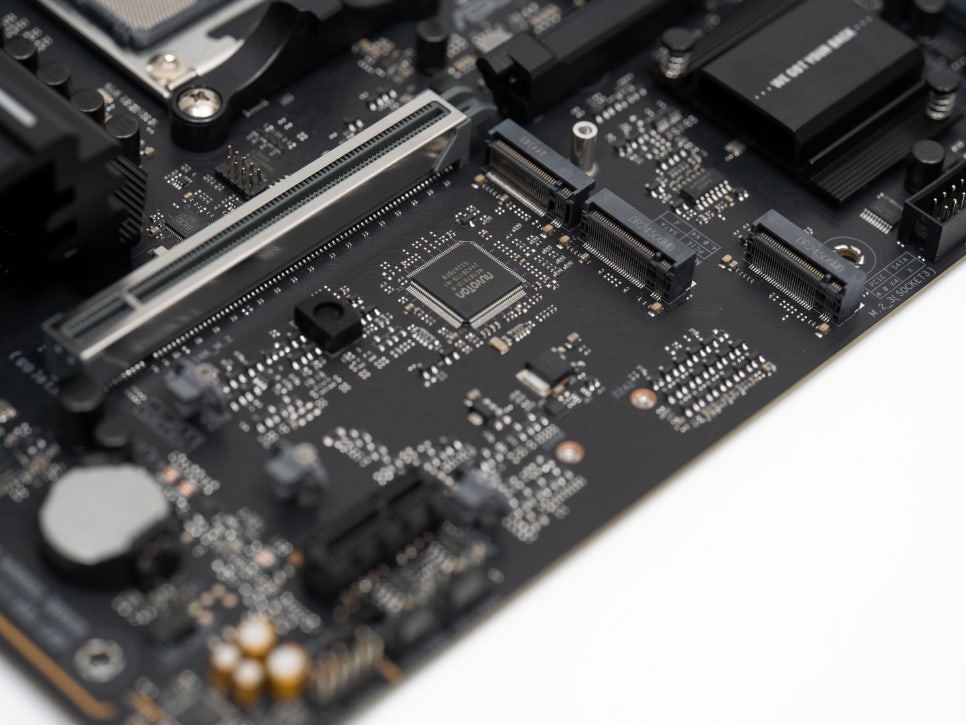

There are three M.2 slots in total, with one supporting PCIe 5.0 x4 to fully utilize the performance of the latest high-performance SSDs. The other two support PCIe 4.0 x4, and all M.2 slots feature the Q-Latch system, allowing easy installation and removal of SSDs without screws.

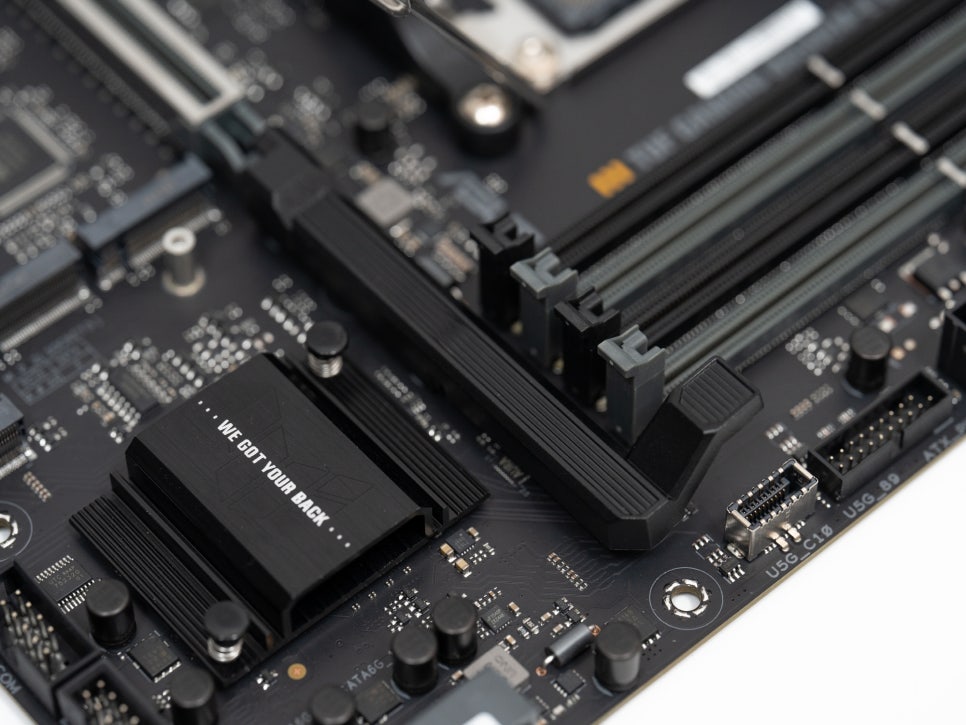

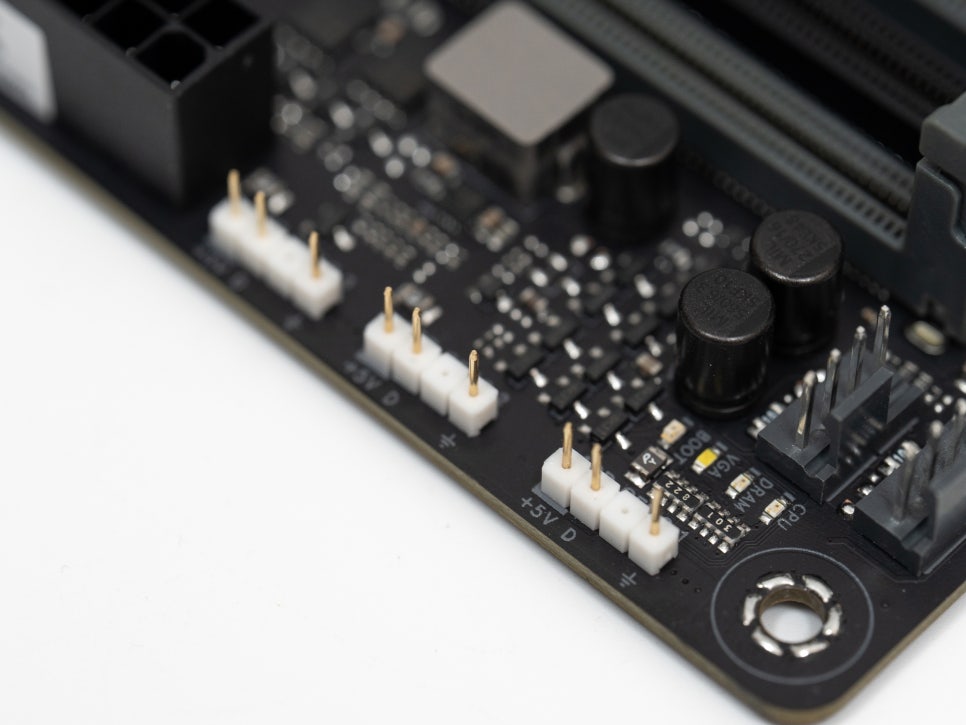

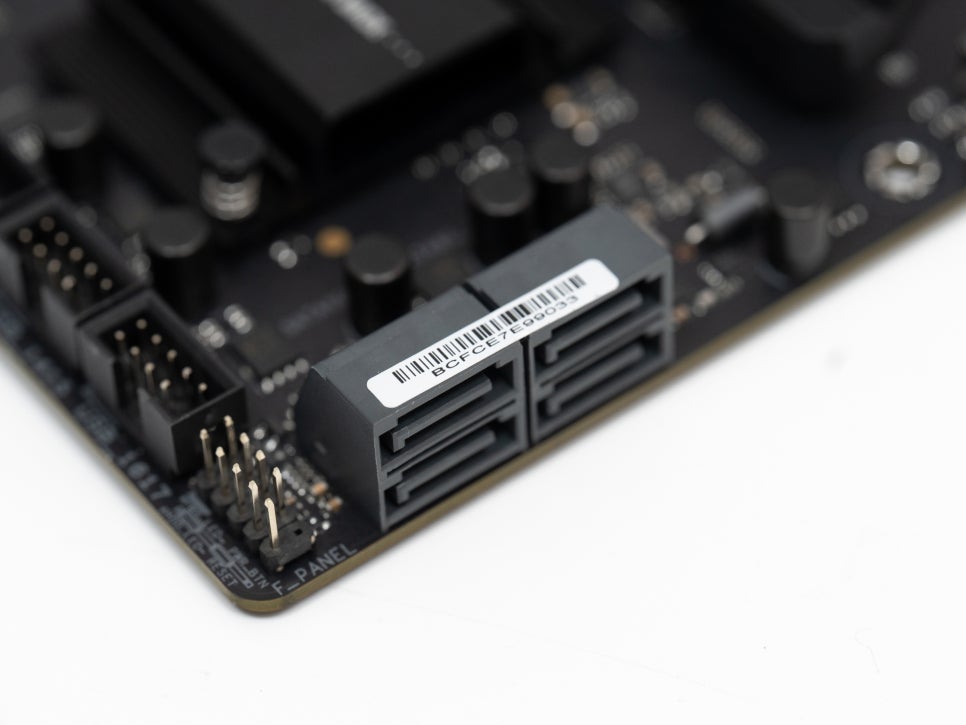

The motherboard offers various internal headers, including USB 3.2 Gen1, USB 2.0, and USB 3.2 Gen2 Type-C headers, fully supporting the front ports of modern cases. Additionally, it provides three ARGB 5V 3-pin headers for configuring diverse RGB lighting systems.

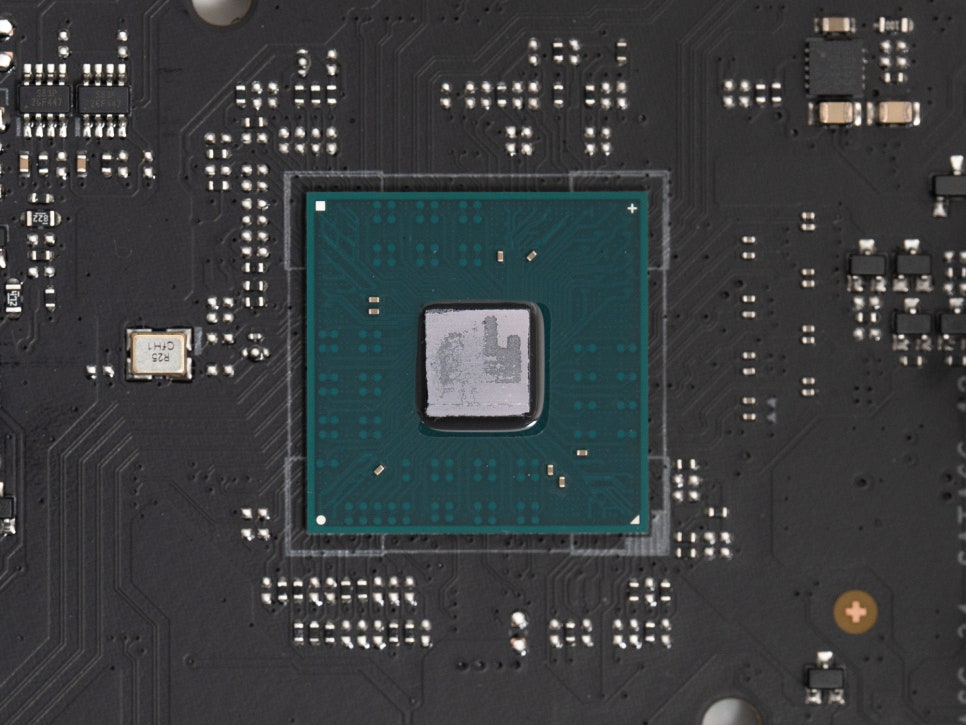

The B650E chipset is AMD’s mid-range chipset, offering full PCIe 5.0 support and USB 3.2 Gen2 ports, allowing users to experience the latest technology at a reasonable price.

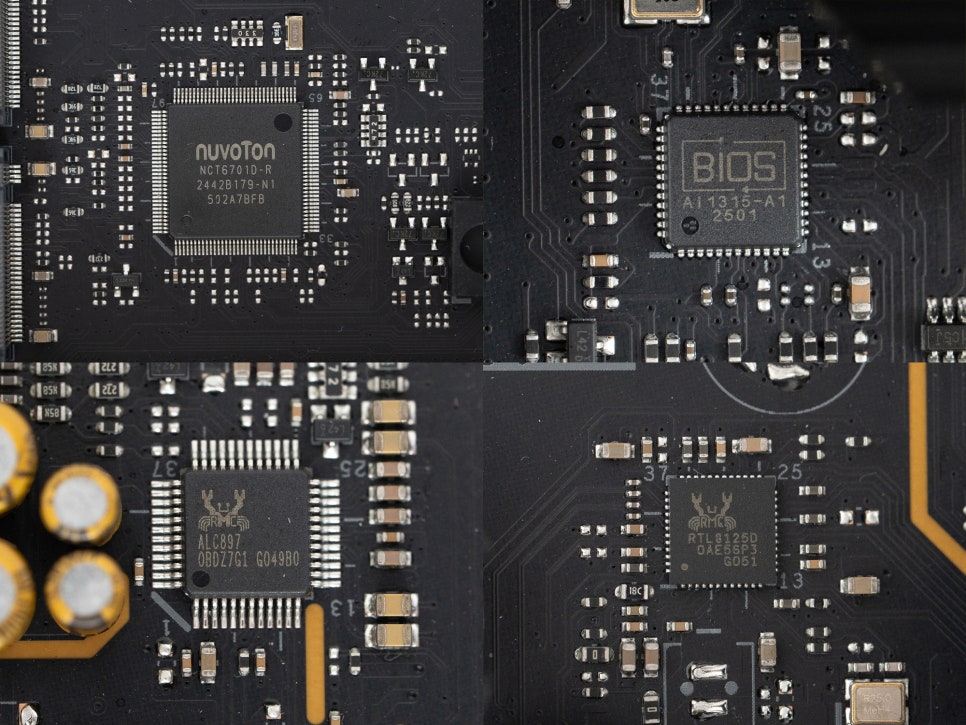

The main chipsets used on the motherboard are as follows:
nuvoTon NCT6701D-R (Super IO Controller)
This chip handles system monitoring and hardware control, providing fan speed control, temperature sensor management, and voltage monitoring functions.
Realtek ALC897 (Audio Codec)
A codec supporting 7.1 channel high-quality audio, offering low noise and high sound quality.
Realtek RTL8125D (Ethernet Controller)
A controller supporting 2.5Gbps high-speed wired networks, offering 2.5 times faster data transfer than the traditional 1Gbps, ensuring low latency and stable connections during gaming and large file transfers.

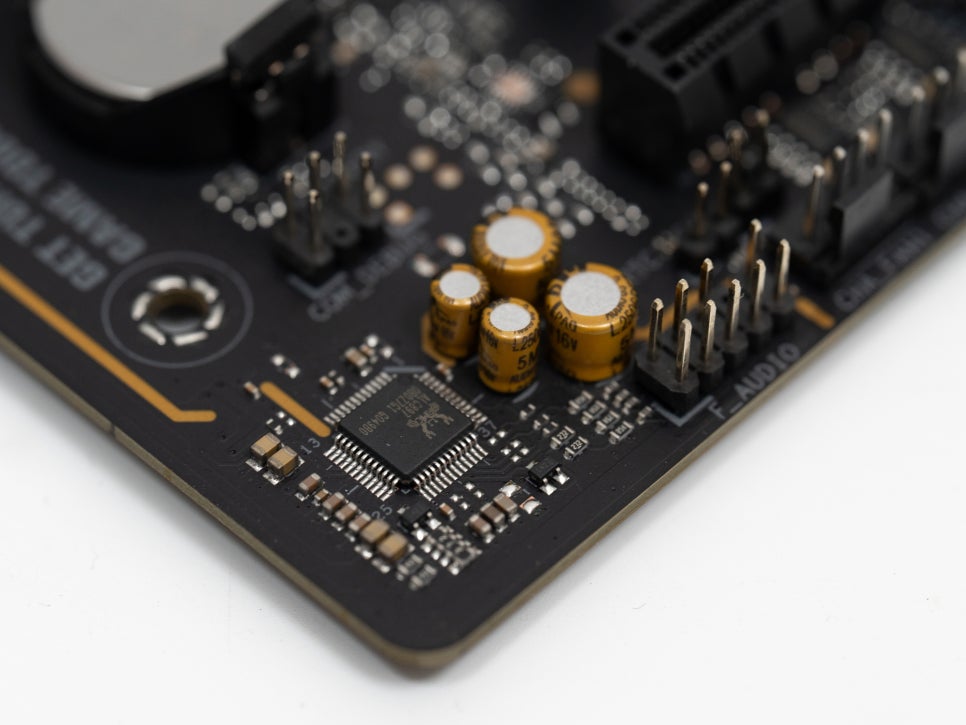

The Realtek ALC897 7.1 channel audio codec supports DTS Audio Processing for enhanced sound quality. The audio area is separately shielded to minimize noise, and premium audio capacitors are used to deliver clear sound quality.
IO Ports

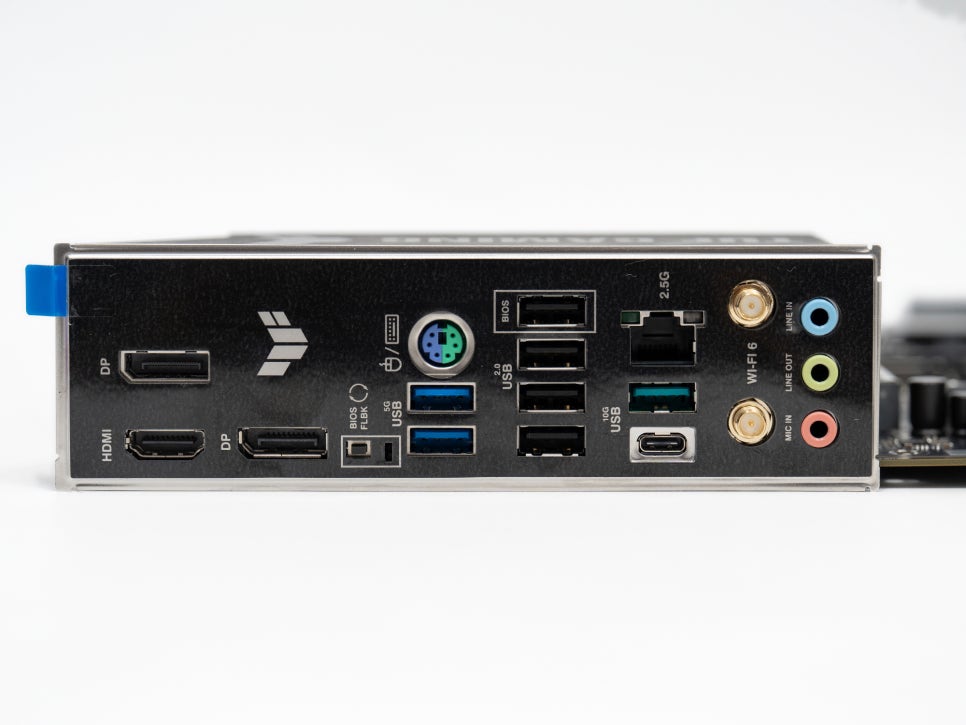

The ASUS TUF Gaming B650EM-E WIFI features an integrated IO shield, eliminating the need for separate IO shield installation during motherboard assembly. The rear IO ports include one HDMI port and two DisplayPorts for integrated graphics output. USB ports include two USB 10Gbps ports, two USB 5Gbps ports, four USB 2.0 ports, a 2.5G Ethernet port, Wi-Fi 6 antenna, and audio ports.

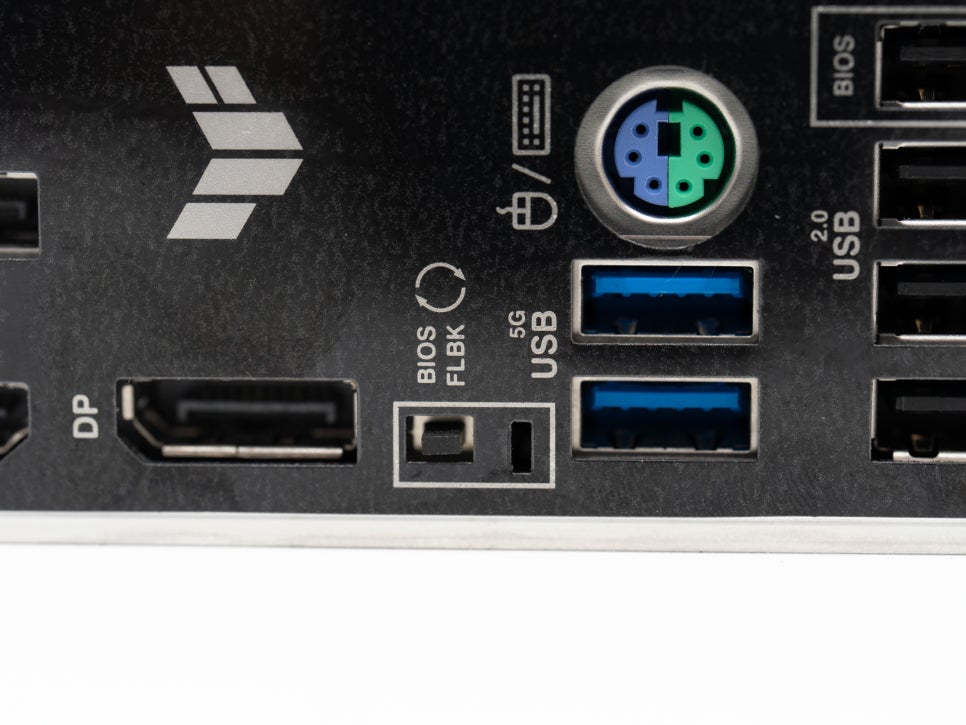

The BIOS Flashback button allows BIOS updates without installing a CPU or memory, facilitating easy firmware updates for the latest CPU support.

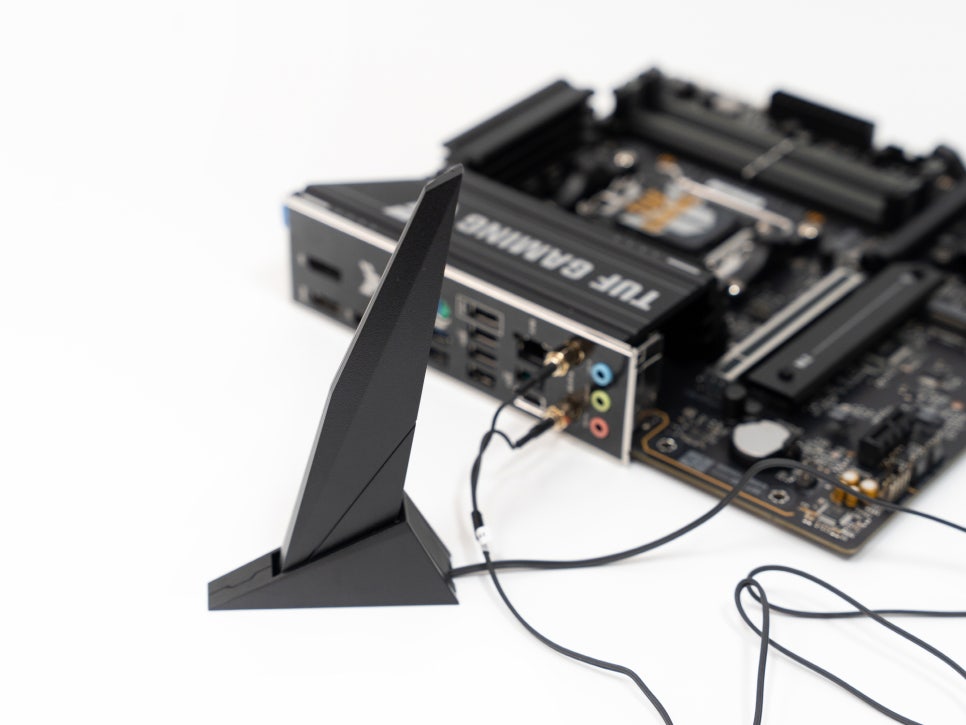

For network connectivity, one Realtek 2.5Gb Ethernet port is provided, along with two antenna terminals for WiFi 6 support. Using the included WiFi antenna, you can achieve stable wireless internet connections with speeds comparable to wired connections.
System Configuration

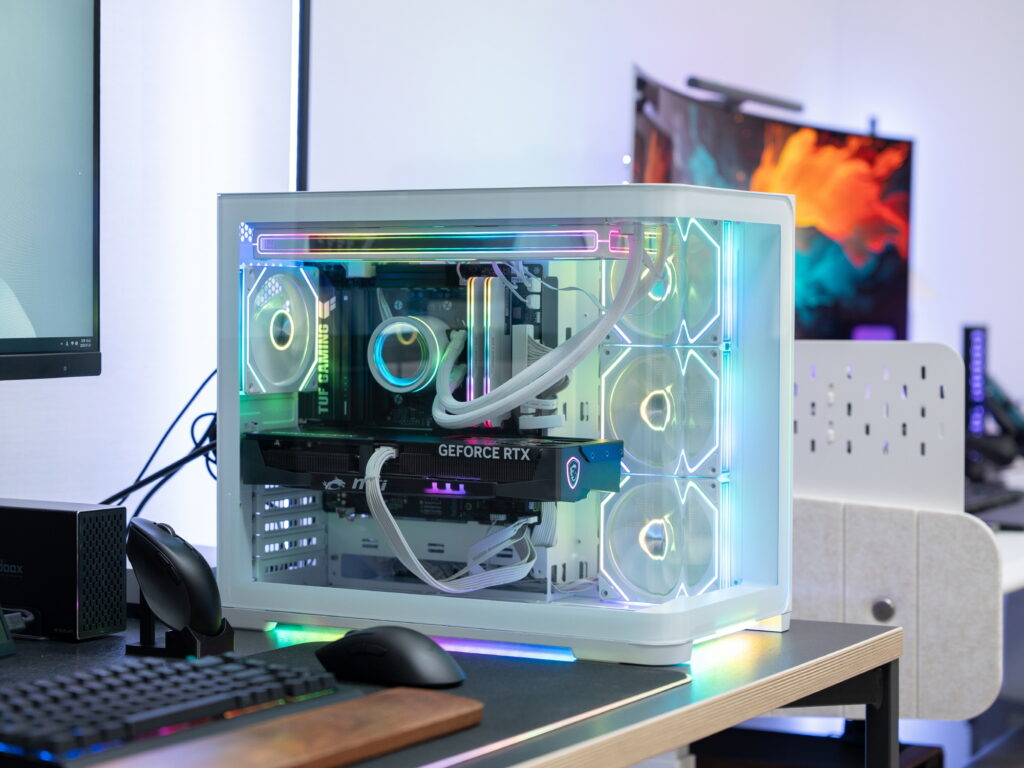

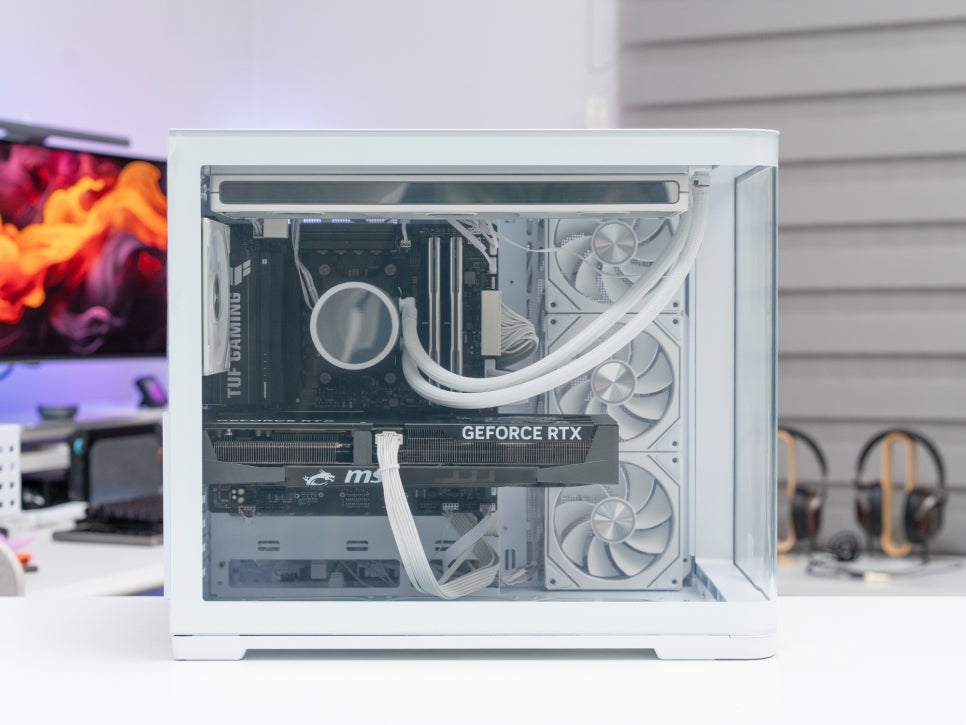

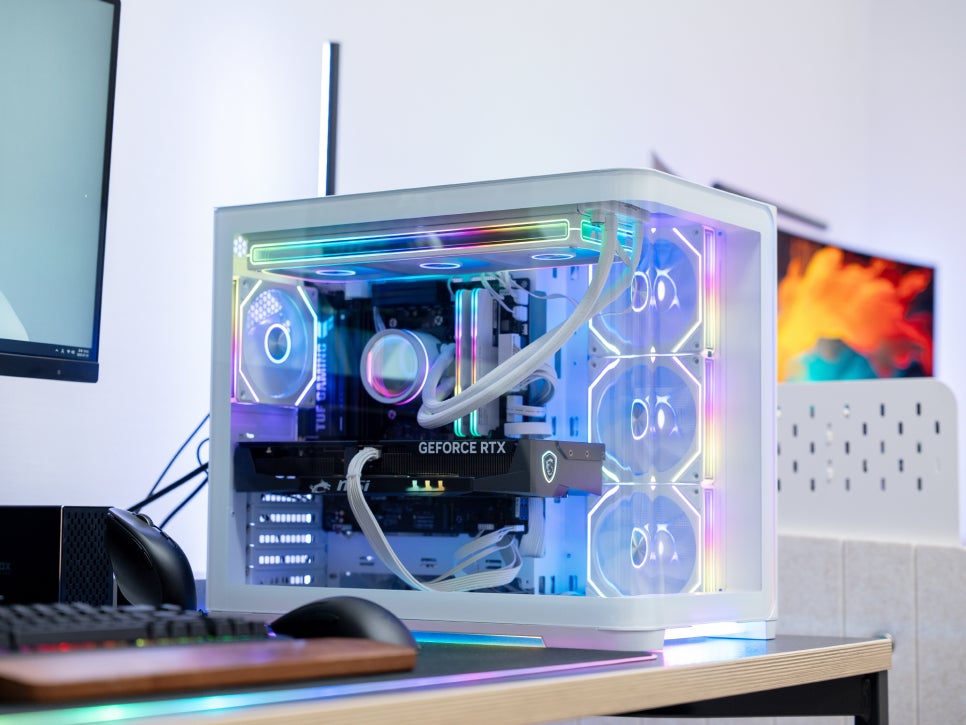

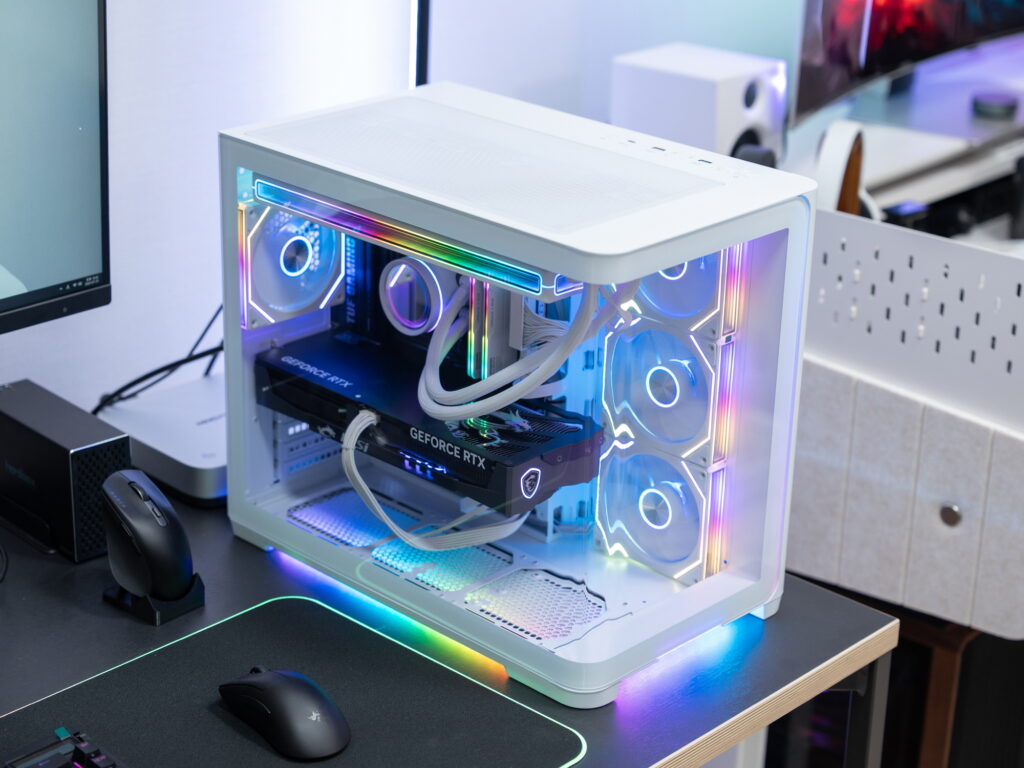

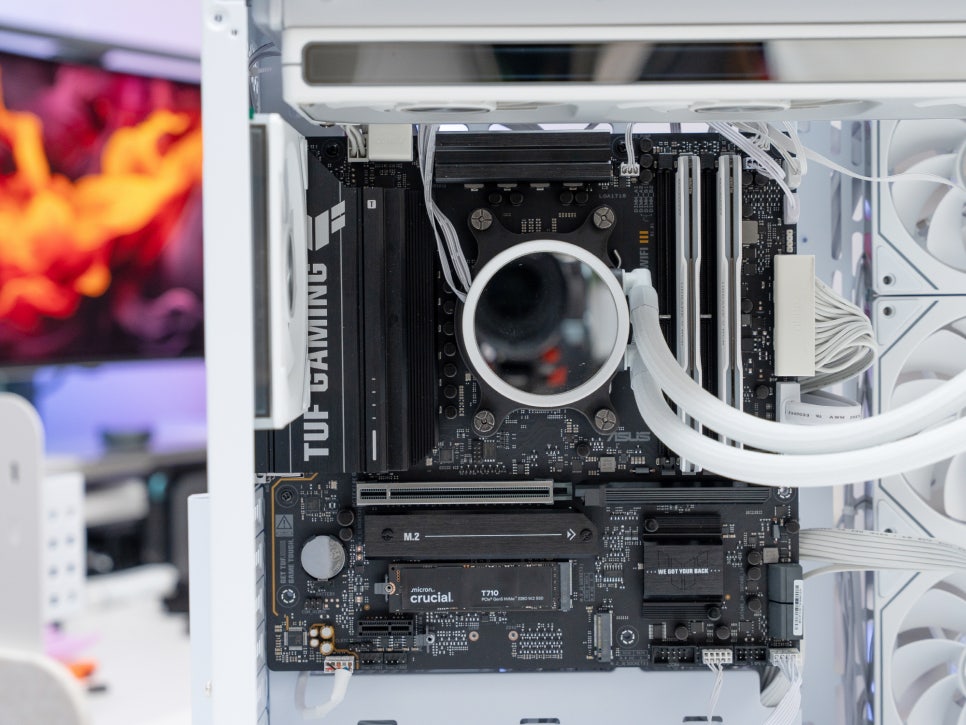

For this test, we configured the system using an AMD Ryzen 7 9800X3D processor. The 8+2+1 phase power stage of the ASUS TUF Gaming B650EM-E WIFI, with its 80A current supply per phase, can stably drive high-performance processors like the 9800X3D.
We chose the NVIDIA RTX 5070 for the graphics card and the Micron Crucial T710 2TB model for storage to maximize the performance of the PCIe 5.0 M.2 slot.
The memory used was a DDR5-6000 32GB (16GB x2) kit, with high-performance settings easily applied through the AMD EXPO profile.
System Configuration
CPU : AMD Ryzen 7 9800X3D
GPU : RTX 5070
MB : ASUS TUF Gaming B650EM-E WIFI by Daewon CTS
RAM : ESSENCORE KLEVV DDR5-6400 CL32D URBANE V RGB 32GB
BIOS
ASUS’s UEFI BIOS is regarded as one of the most intuitive and feature-rich BIOS interfaces. The BIOS on the TUF Gaming B650EM-E WIFI is designed for ease of use by both beginners and experts.
In EZ Mode, you can view key system information at a glance, with real-time monitoring of CPU temperature, fan speed, and voltage. Switching to Advanced Mode allows for detailed overclocking settings, PBO (Precision Boost Overdrive) settings, and Curve Optimizer, all well-implemented for optimizing system performance on the AMD platform.
To use the latest processors, a firmware update may be necessary. Fortunately, the BIOS Flashback feature allows updates without CPU installation, ensuring no issues with supporting the latest CPUs like the 9800X3D.
Benchmarking
We ran CPU-Z to verify the basic system specifications. The Ryzen 7 9800X3D was correctly recognized, and all hardware specs, including DDR5 memory and PCIe 5.0 support, were accurately detected.

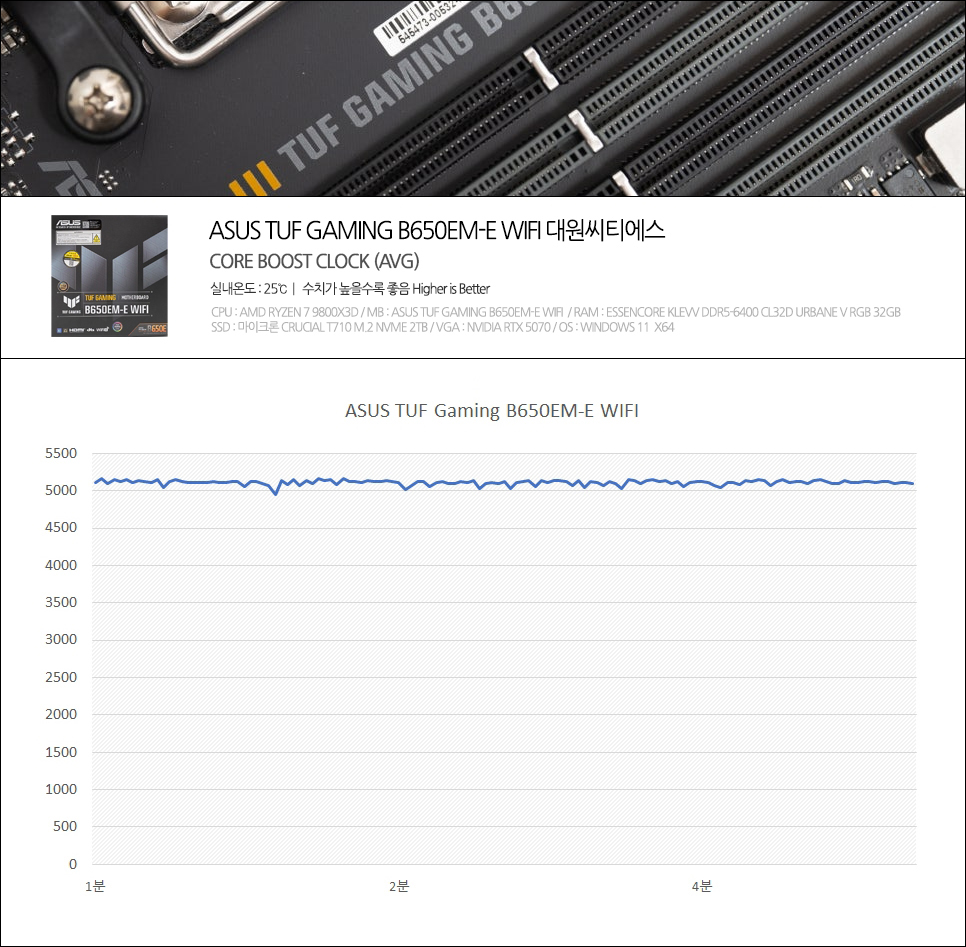

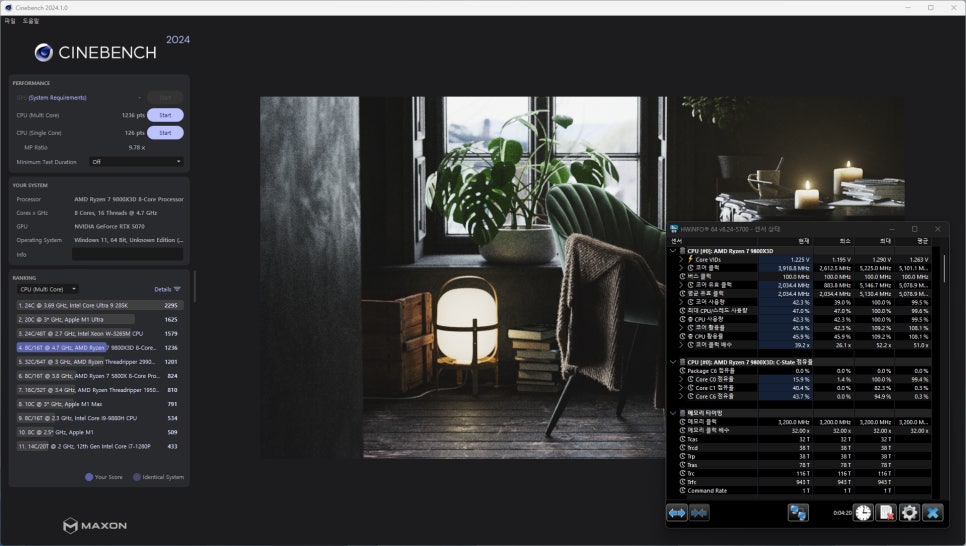

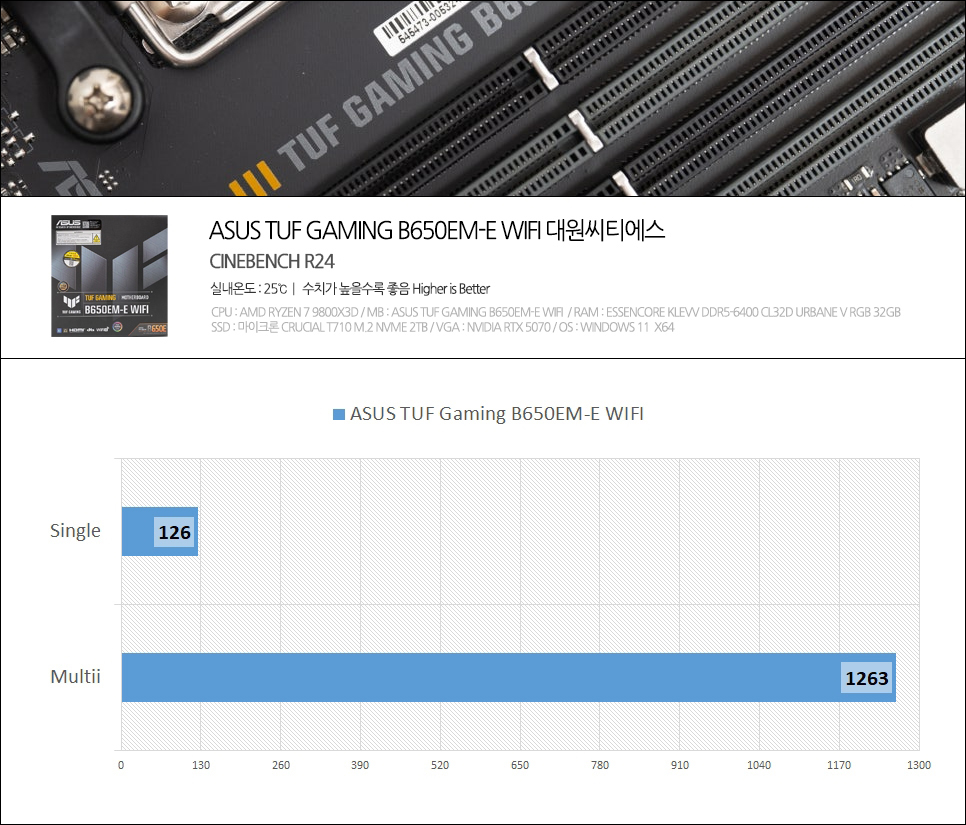

In performance tests using Cinebench 2024, excellent results were achieved in both single-core and multi-core performance. The single-core test recorded approximately 126 points, while the multi-core test achieved around 1,263 points. During multi-core testing, monitoring of CPU core boost clock changes confirmed stable boost clocks averaging 5,110MHz.

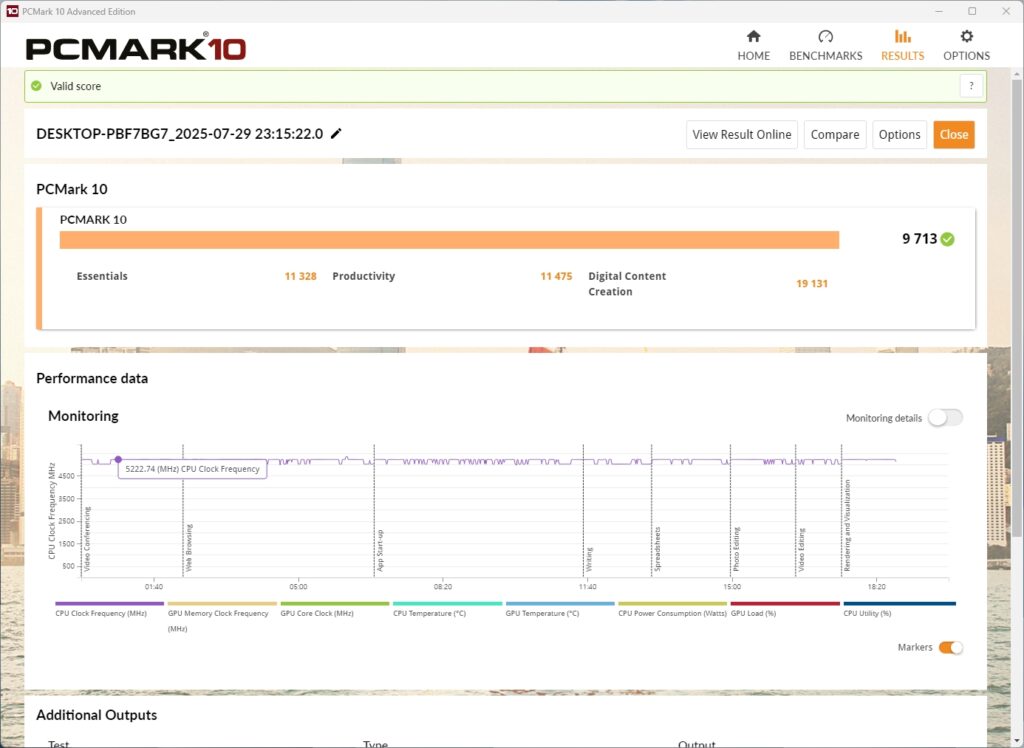

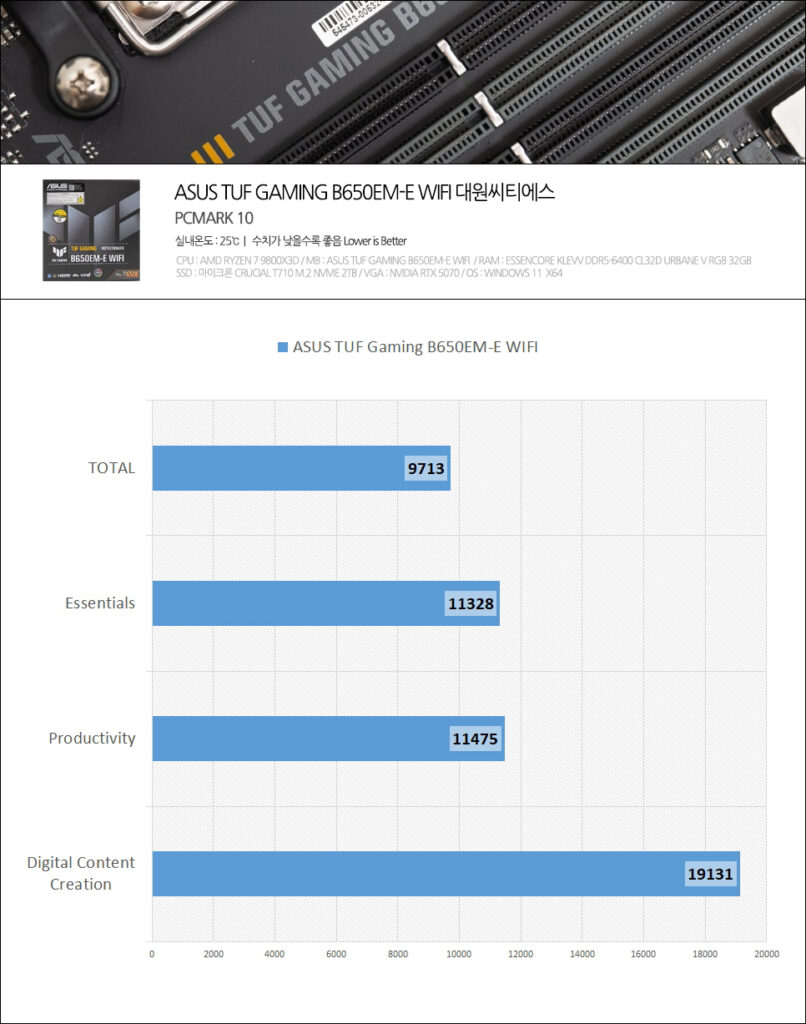

PCMark 10 testing evaluated overall system performance. High scores were recorded across all areas – Essential, Productivity, and Digital Content Creation – demonstrating excellent performance from everyday tasks to professional content creation.

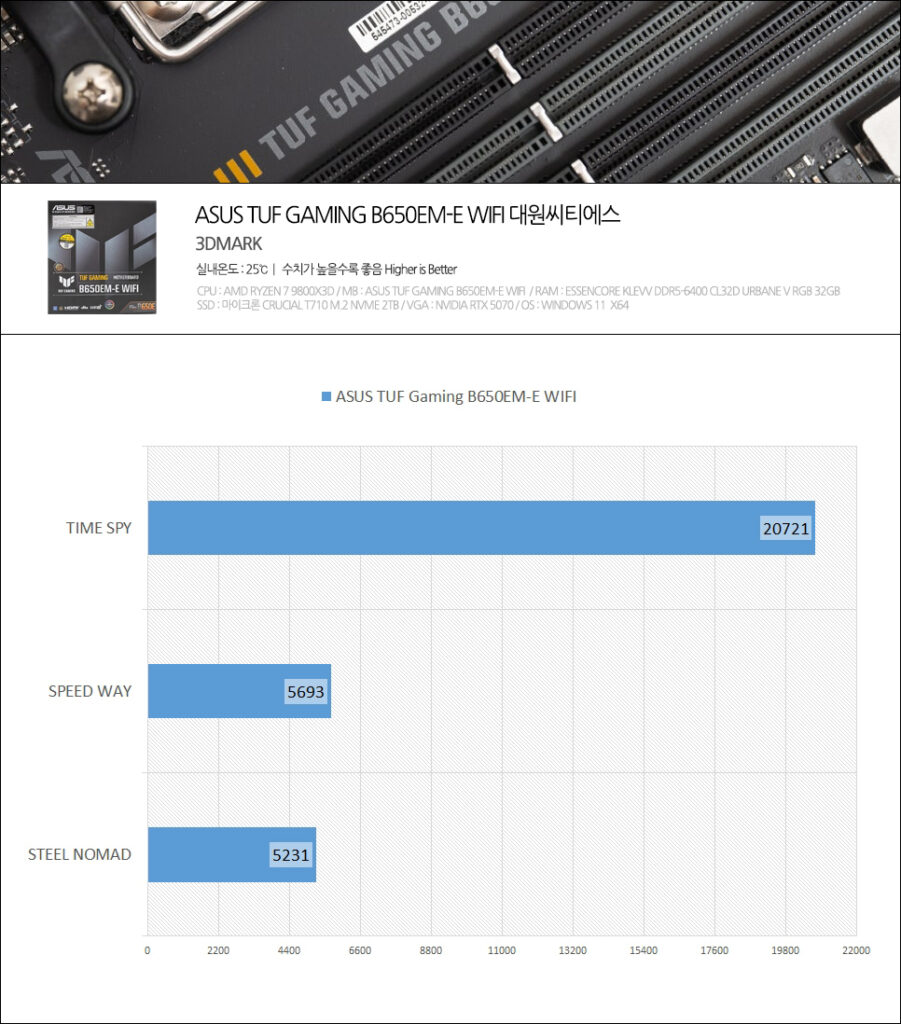

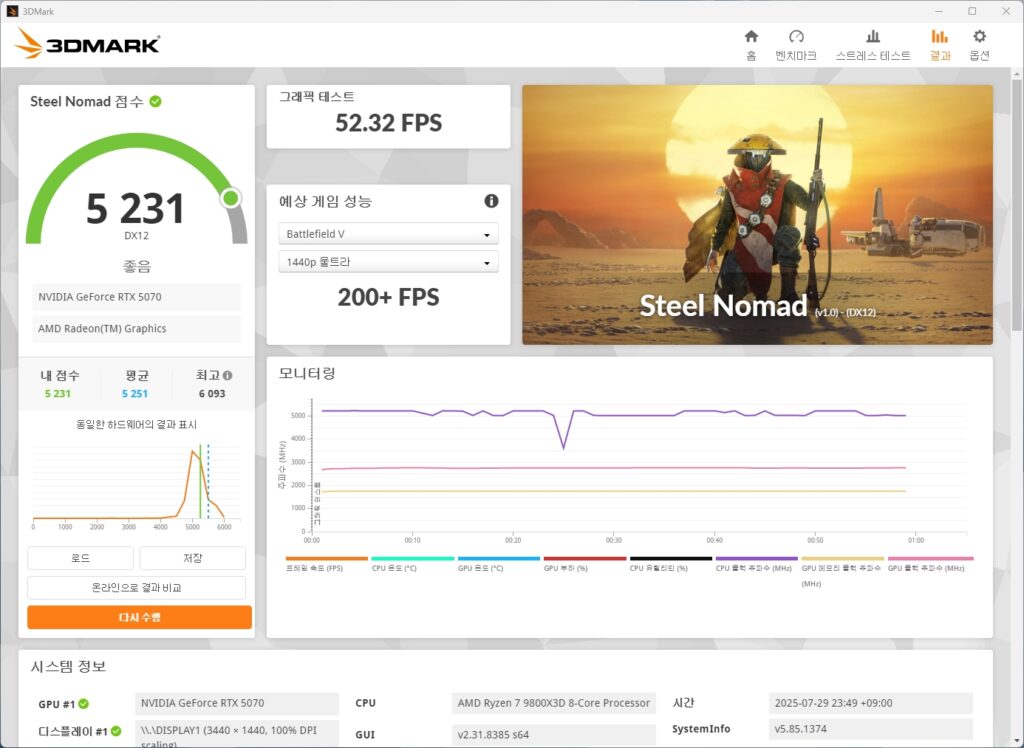

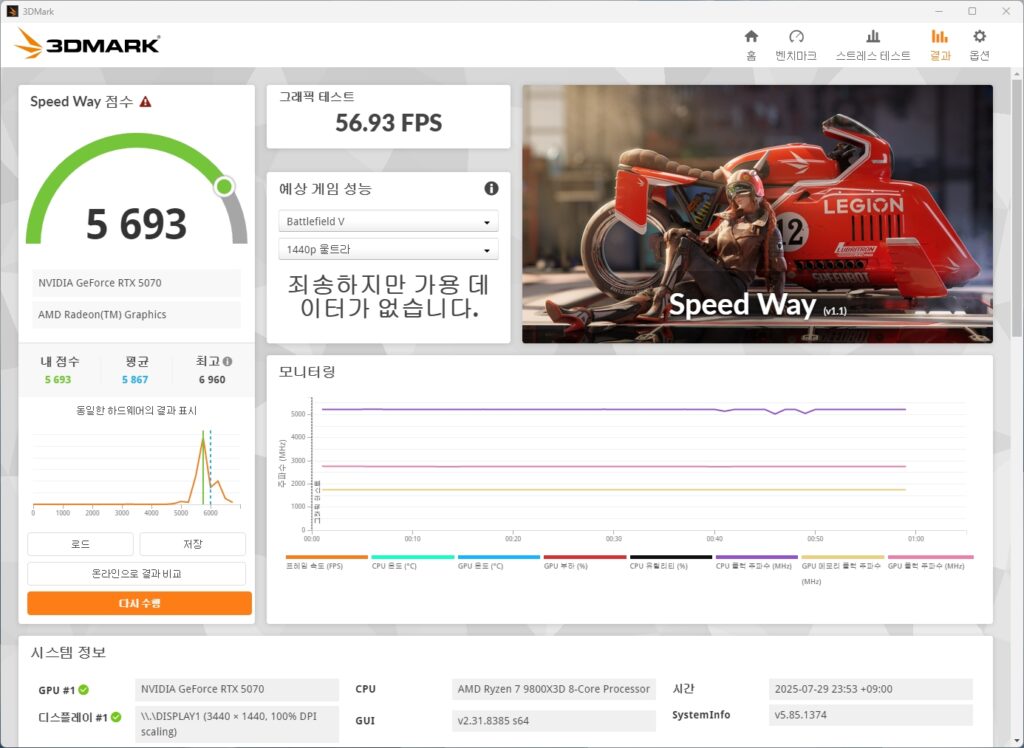

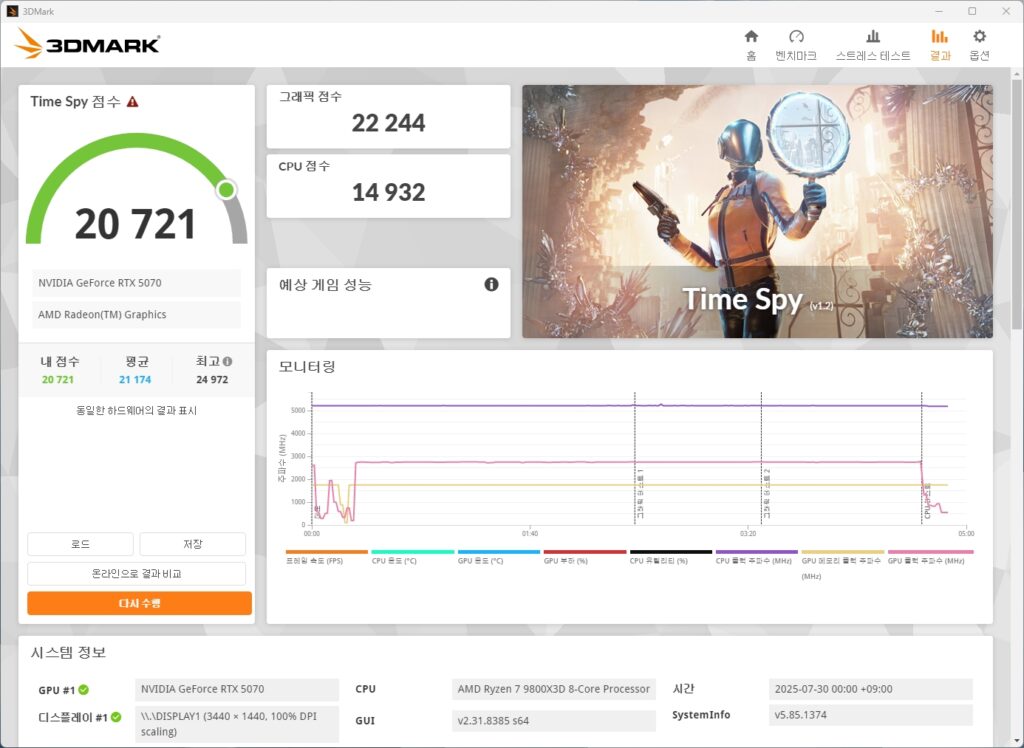

Graphics performance testing using 3DMark included various benchmarks such as Steel Nomad, Time Spy, and Speed Way. The RTX 5070 using the PCIe 5.0 slot showed perfect performance.

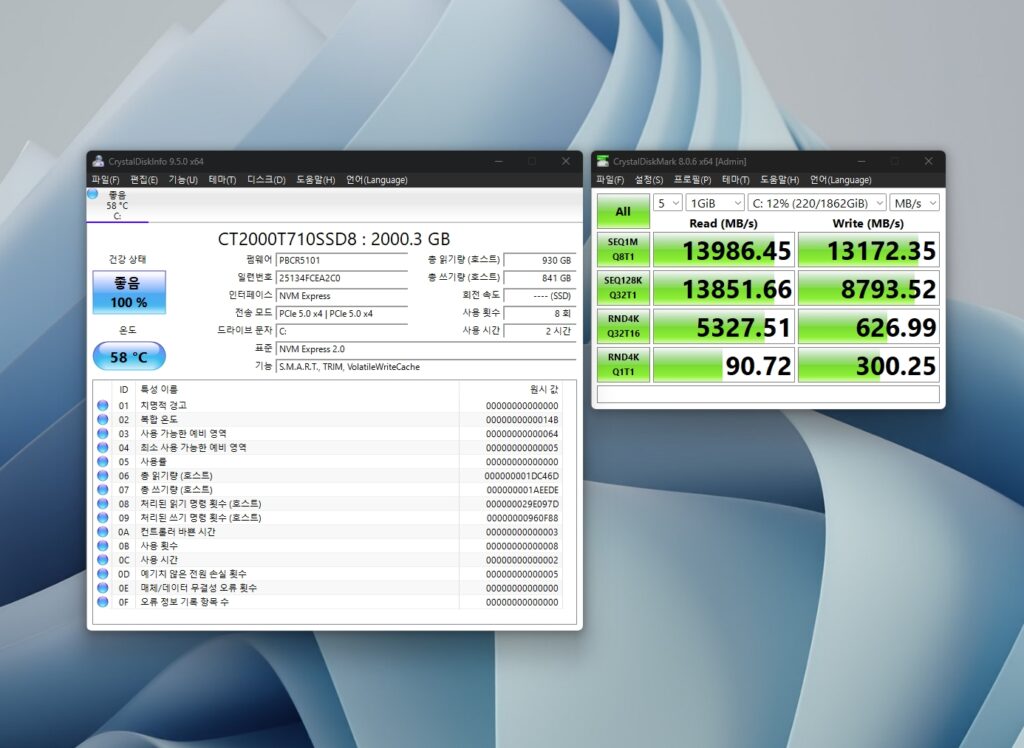

For PCIe 5.0 performance testing, measurements were conducted using the Micron Crucial T710 SSD. CrystalDiskMark test results showed sequential read speeds of approximately 13,986MB/s and sequential write speeds of approximately 13,172MB/s, confirming that the PCIe 5.0 M.2 slot operates normally.

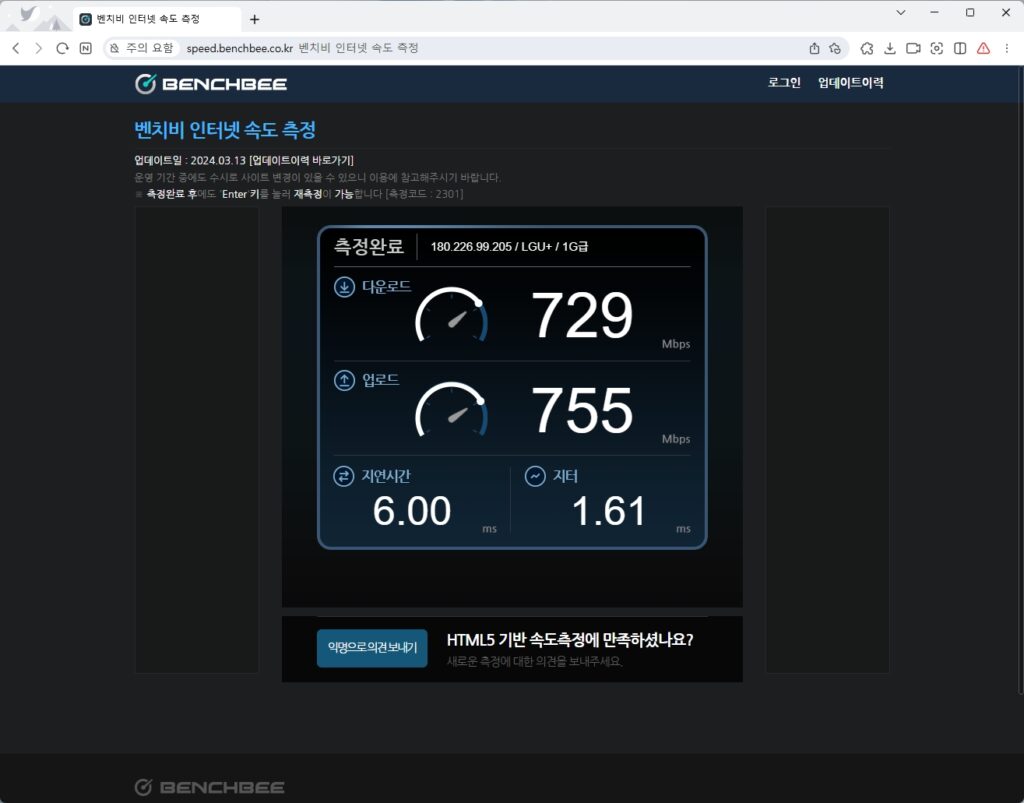

WiFi 6 performance testing was also conducted. Results measured in a 1Gbps internet environment showed wireless speeds nearly identical to wired connections, confirming satisfactory WiFi performance levels.
Software
ASUS Armoury Crate is comprehensive software for integrated management of ASUS hardware. It’s very convenient as it allows control of not only the motherboard but also ASUS graphics cards and peripherals through a single program.

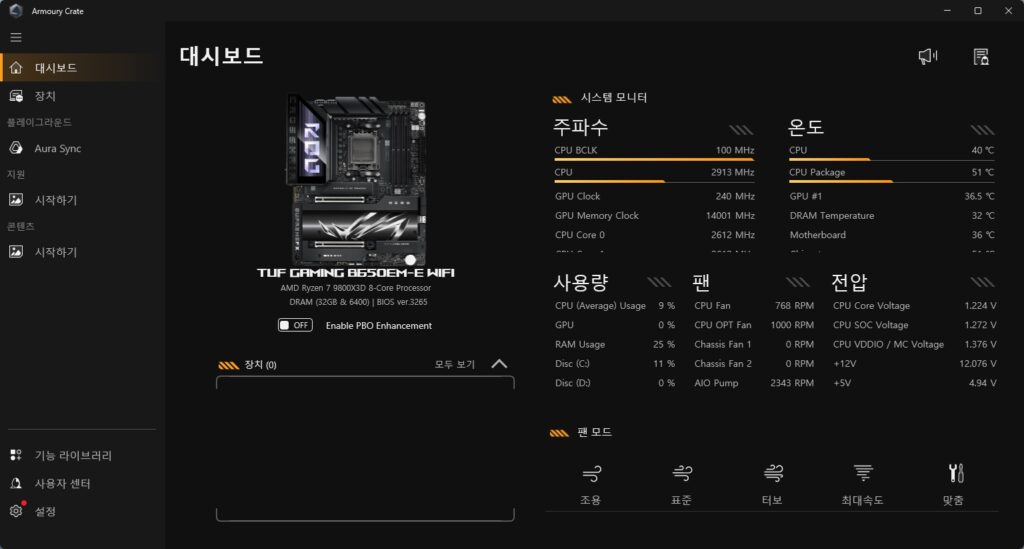

System monitoring features allow real-time checking of CPU, GPU, memory usage, and temperatures, while the Fan Xpert 2+ function is provided for fan speed control. Individual fan curve settings are possible for each fan header, allowing you to balance noise and cooling performance.
The Two-Way AI Noise Cancelation feature removes noise from microphones and speakers in real-time, significantly improving voice call quality during online meetings or gaming. It effectively blocks various environmental noises such as keyboard typing sounds and air conditioning noise using machine learning algorithms.

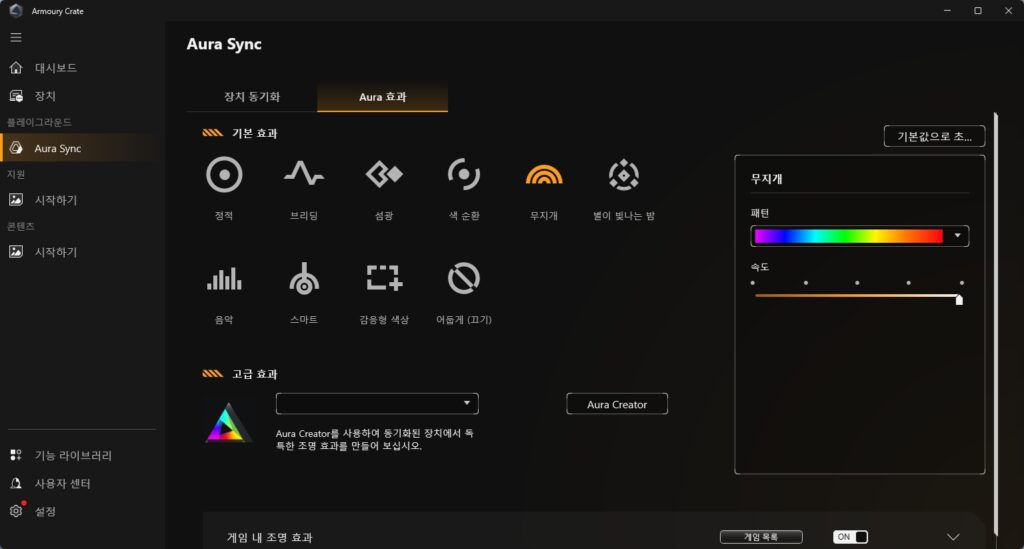

The Aura Sync feature for RGB lighting control is also included, allowing free control of lighting devices connected to the motherboard’s RGB headers. Various lighting effects and color settings enable the creation of a personalized gaming system.
Conclusion
The ASUS TUF Gaming B650EM-E WIFI is an excellent value motherboard that provides outstanding performance and rich features at a reasonable price point. The power delivery system with 8+2+1 phase configuration and 80A power supply capability per phase can stably drive high-performance processors like the 9800X3D, while providing sufficient expandability through full PCIe 5.0 support and three M.2 slots.
The B650E chipset’s advantage of no PCIe lane sharing design allows simultaneous optimal performance use of graphics cards and high-performance SSDs, and support for high-speed network connections through WiFi 6 and 2.5Gb Ethernet is also impressive.
The TUF series is characterized by guaranteeing stable performance even during extended gaming sessions through military-grade component usage, excellent power delivery design, and effective heatsink configuration. If you’re considering building or upgrading a gaming PC with an AMD platform, this motherboard will be a satisfying choice in terms of both performance and price.
