In June 2025, AMD’s ambitious launch of the Radeon RX 9000 series has become a major talking point in the graphics card market. Based on the RDNA 4 architecture, this series features the RX 9070 XT and RX 9070 in the premium segment, while the RX 9060 XT is positioned as part of the mainstream lineup. Particularly noteworthy is its aggressive pricing in South Korea, with the 8GB model available for 400,000 to 500,000 KRW, capturing significant consumer interest.
The RX 9060 XT stands out with its improved power efficiency, enhanced ray tracing performance, and competitive pricing, challenging rival models like the RTX 5060 Ti. Today, we will explore the features and performance of the XFX RADEON RX 9060 XT SWIFT DUAL WHITE OC D6 8GB, released by XFX, a main partner of Radeon graphics cards.
Specifications and Configuration
XFX, a leading partner for Radeon graphics cards with over 24 years of experience, is known for manufacturing stable and high-performance graphics cards. With the launch of the RX 9000 series in 2025, XFX has restructured its lineup into three tiers: Mercury, Quicksilver, and Swift.

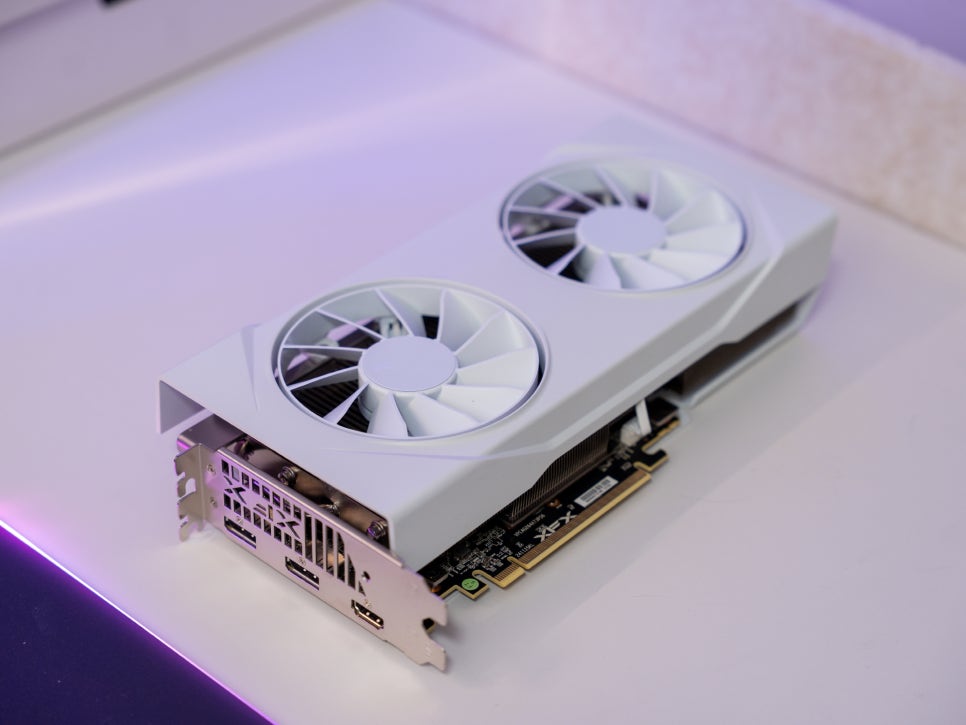

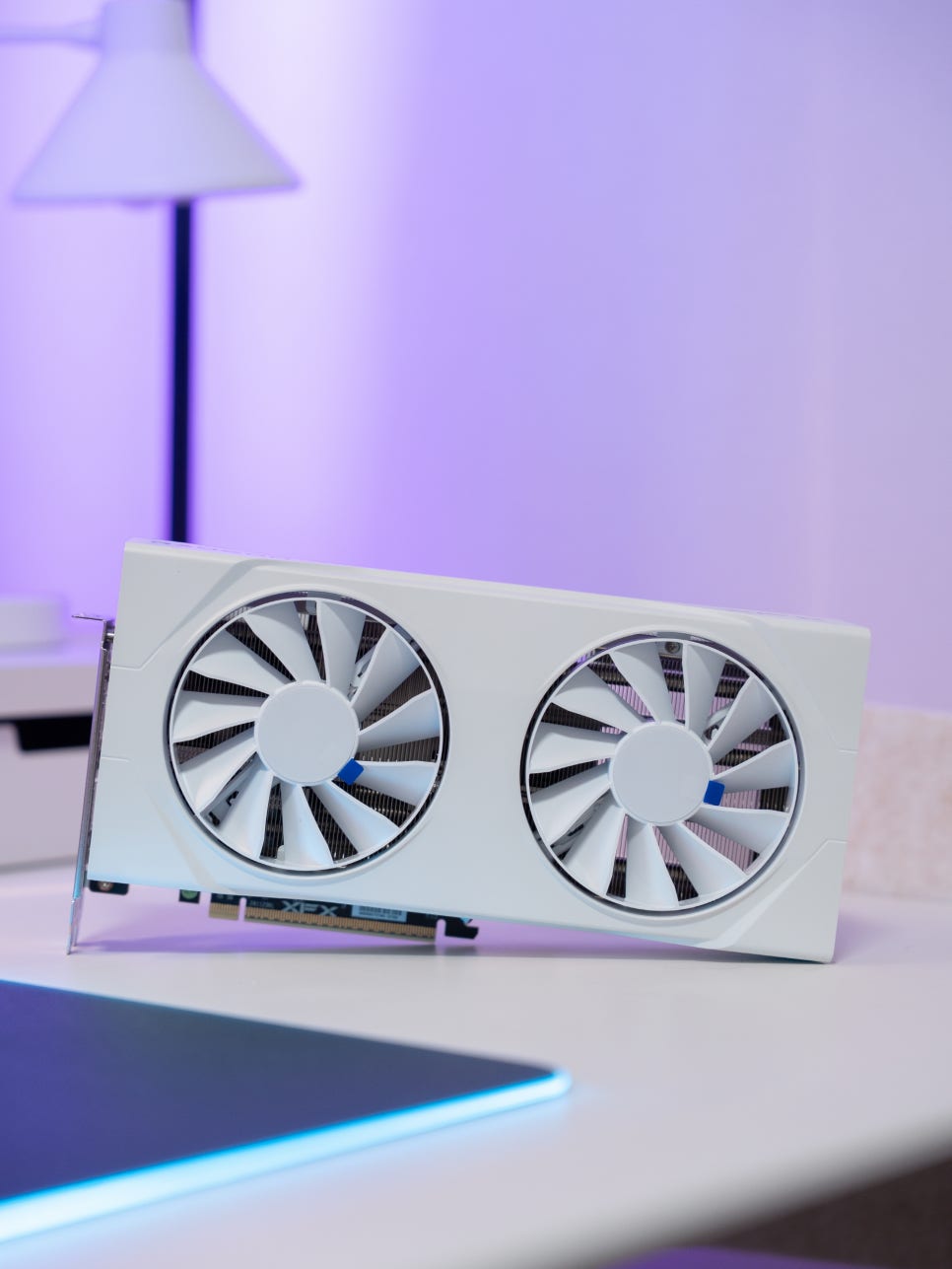

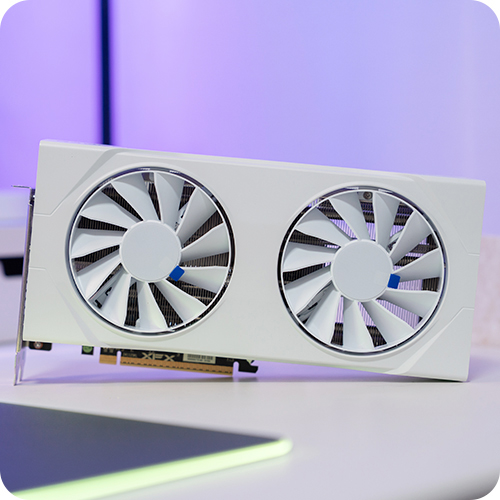

The product under review today is the Swift lineup’s XFX Radeon RX 9060 XT SWIFT DUAL WHITE OC D6 8GB model. This mainstream graphics card comes in a sleek white color, featuring a compact size and dual-fan design, making it suitable for both SFF systems and large desktops.
Product Specifications
Chipset: RX 9060 XT
Stream Processors: 2,048
Compute Units: 32 CU
Base Clock: 1,900MHz
Game Clock: 2,780MHz
Boost Clock: 3,320MHz (OC model)
Memory: GDDR6 8GB
Memory Bus: 128-bit
Memory Bandwidth: 340GB/s
Power Consumption: 182W
Recommended Power: 450W or higher
Connection Interface: PCIe 5.0 x16 support
Power Connector: 8-pin x1

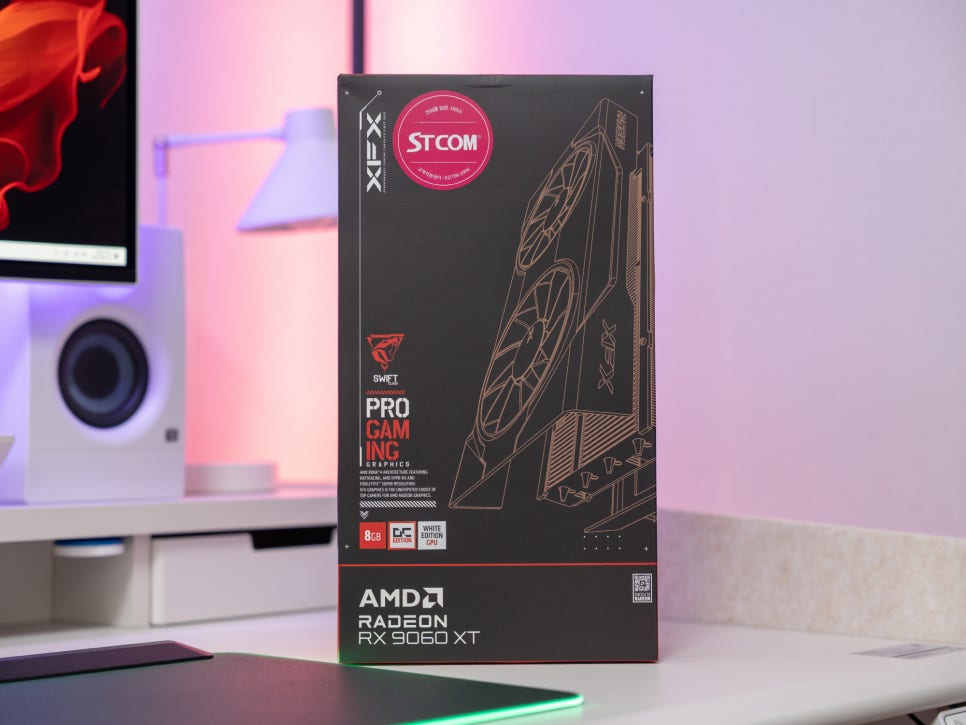

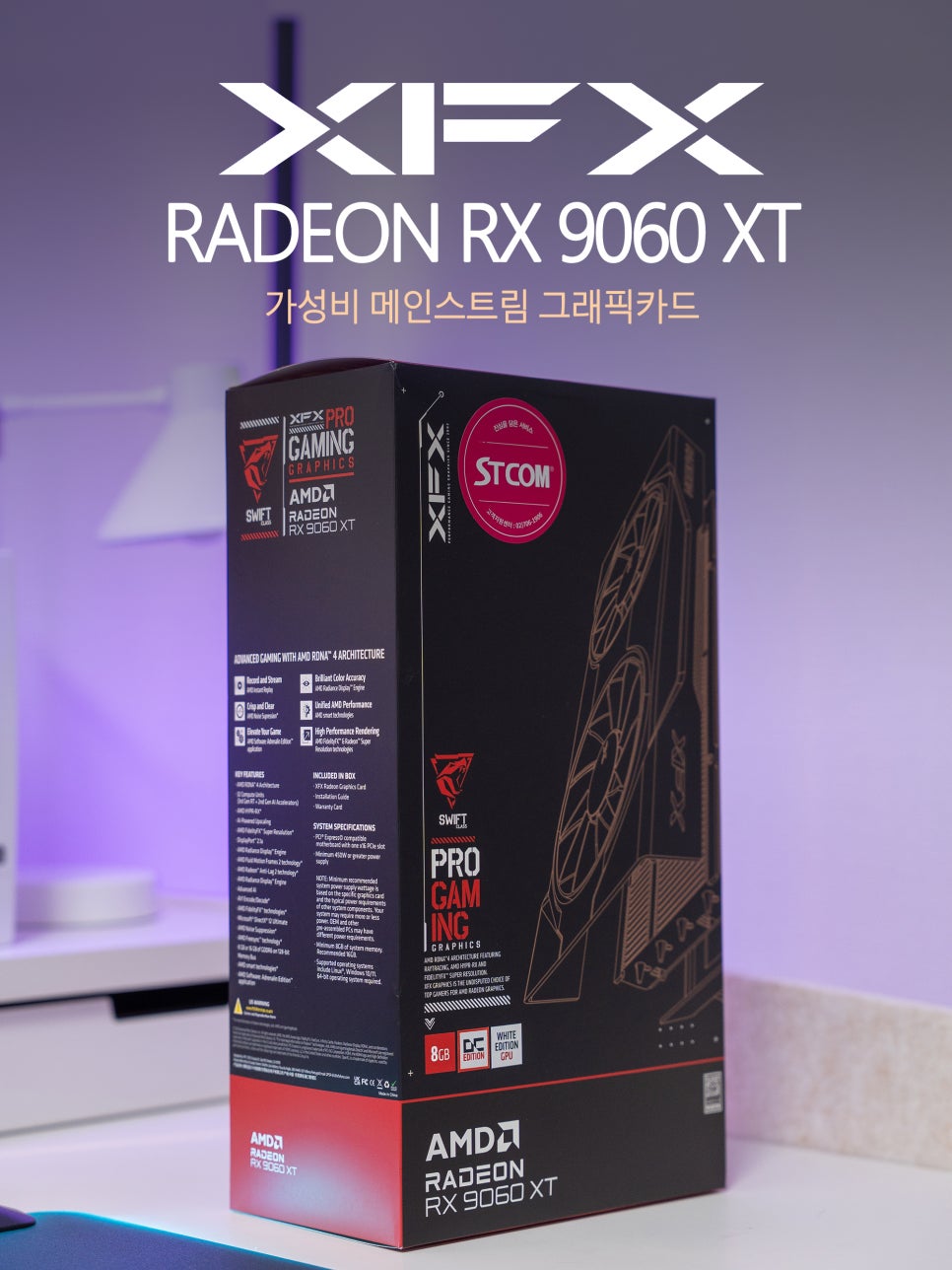

The package includes the XFX Radeon RX 9060 XT SWIFT DUAL WHITE OC D6 8GB unit and a quick guide.
Design and Features

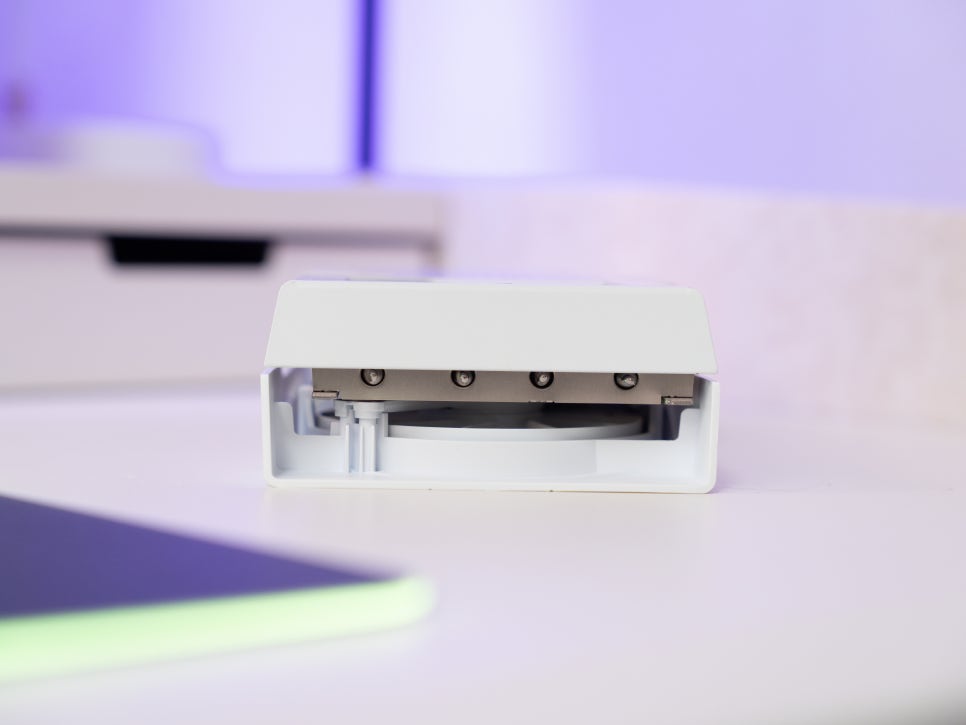

The XFX Radeon RX 9060 XT SWIFT DUAL model is designed with dimensions of 270mm x 124mm x 48mm. It fits comfortably in most compact cases, and its 48mm, 2-slot thickness is appealing for those interested in mini ITX cases or SFF (Small Form Factor) builds.

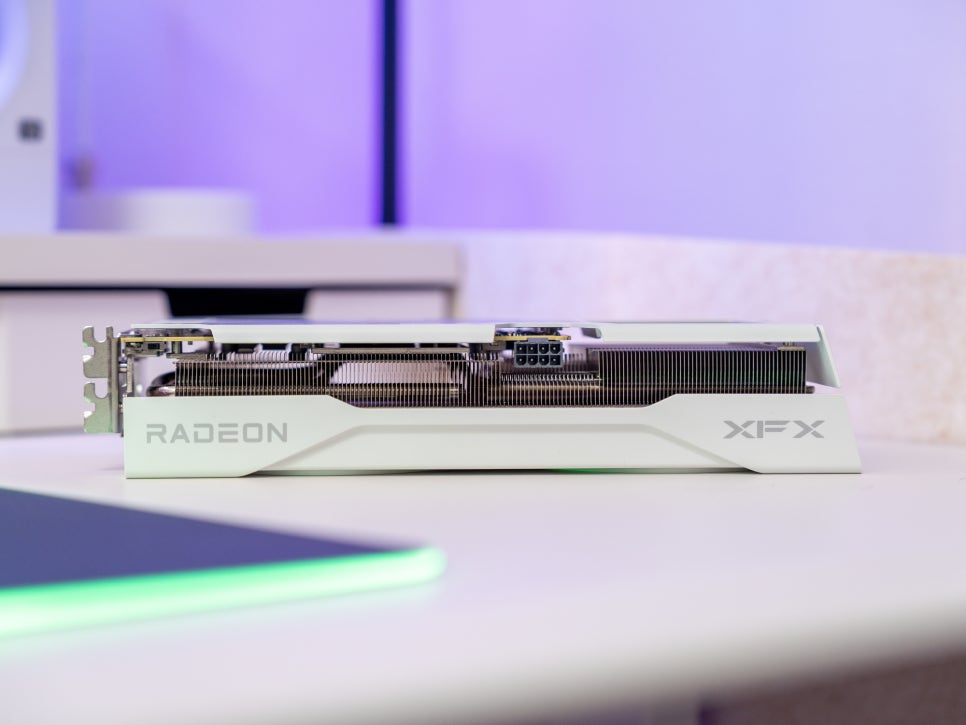

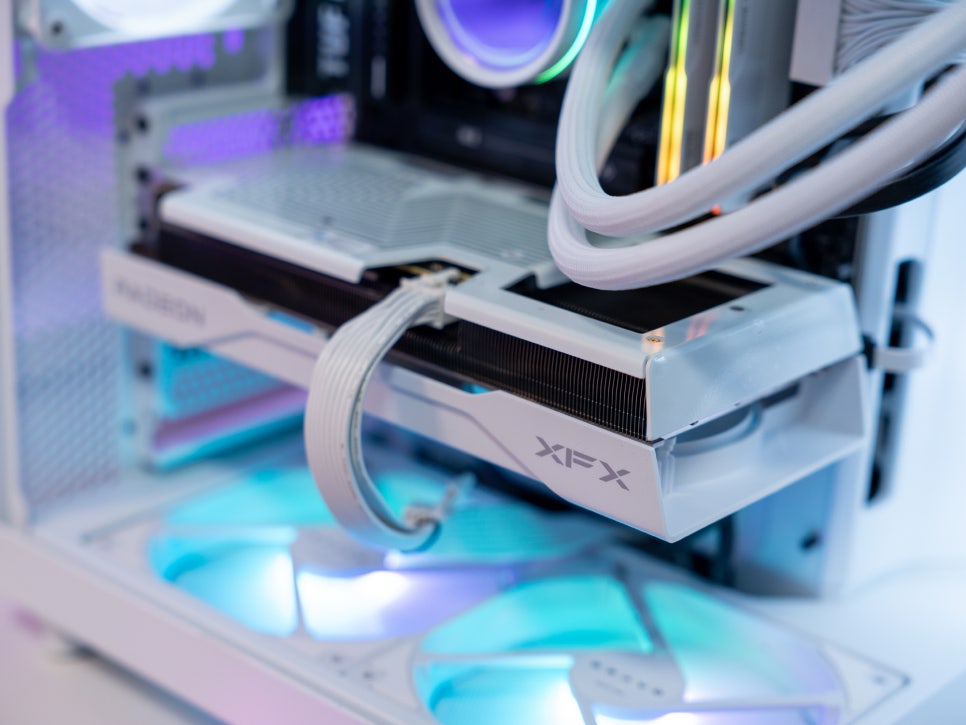

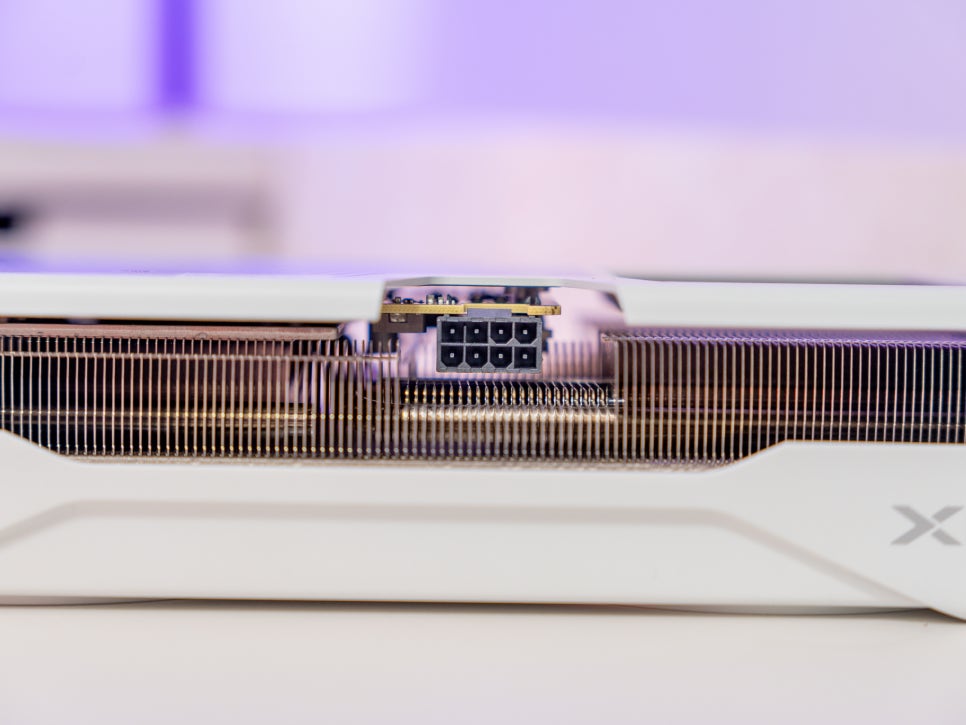

The RX 9060 XT SWIFT uses a single 8-pin PCIe auxiliary power connector for efficient power management. Thanks to improved power management, a single 8-pin PCIe power connector suffices, and the recommended power supply of 450W is adequate, allowing for upgrades without replacing the power supply.

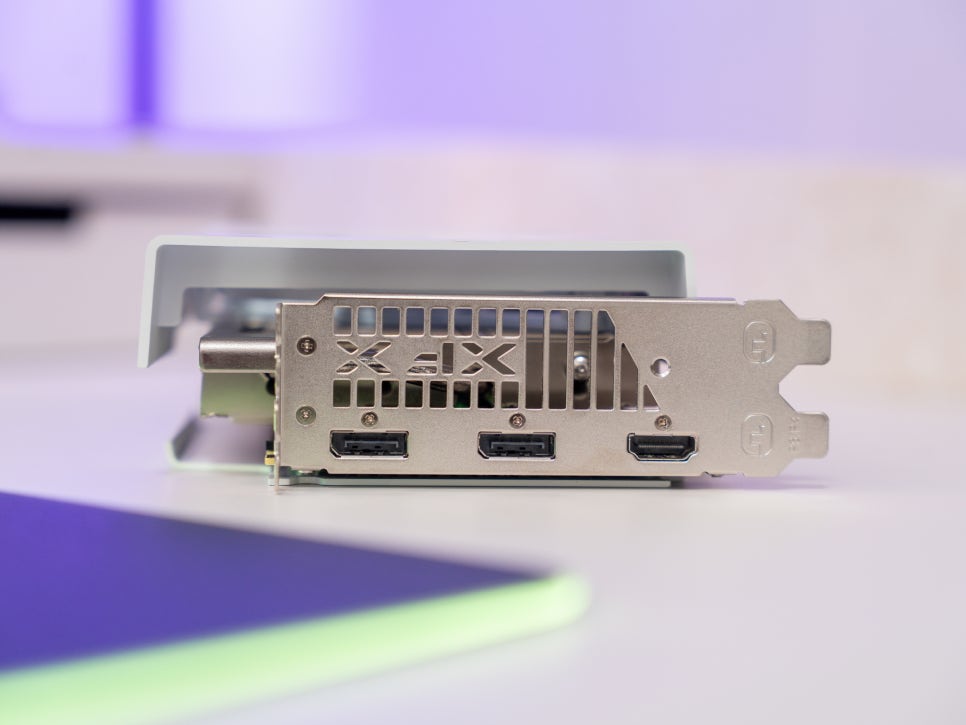

The output ports include one HDMI 2.1b and two DisplayPort 2.1a, supporting the latest display standards. HDMI 2.1b supports up to 4K 120Hz and 8K 60Hz, while DisplayPort 2.1a fully supports up to 8K resolution and high refresh rate monitors.

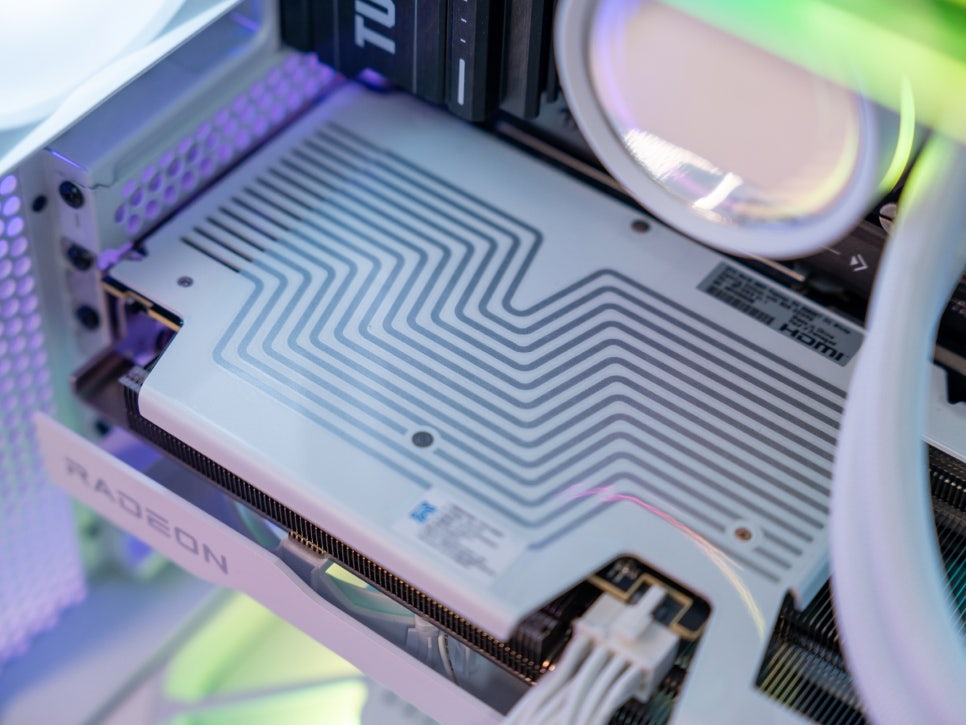

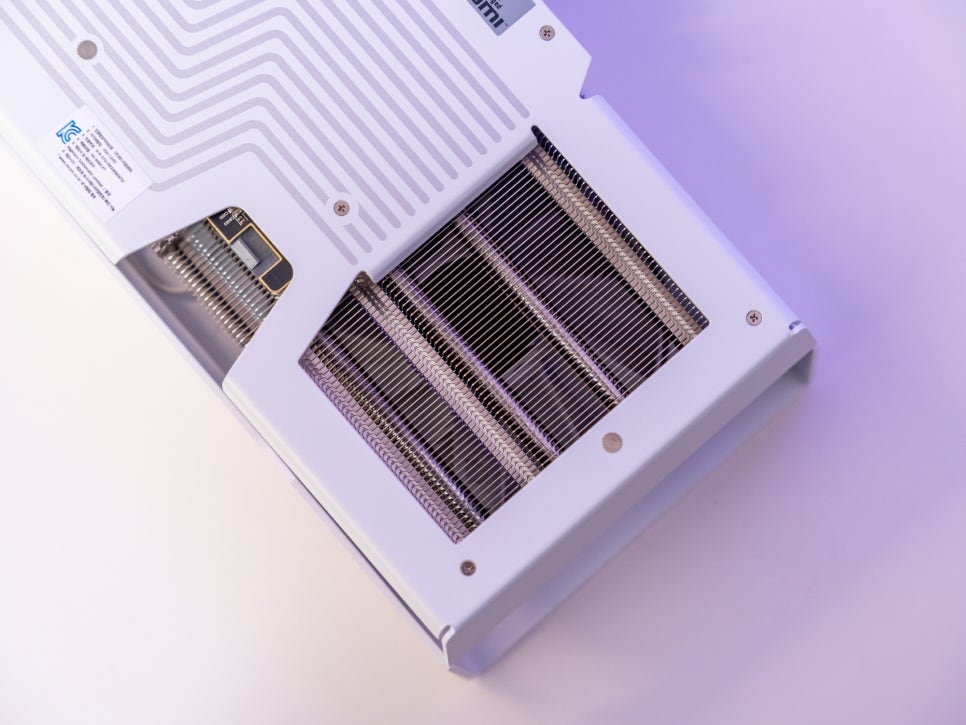

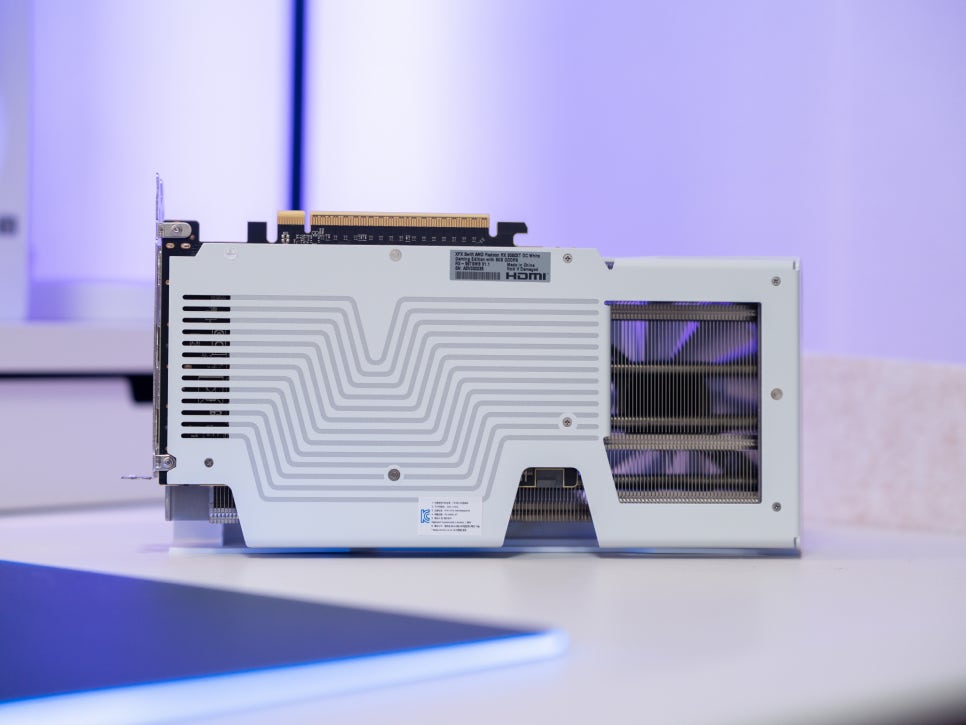

The white backplate features a unique pattern, and large holes are designed where the PCB is absent to quickly dissipate heat from the cooler’s heat sink. The aluminum backplate not only prevents PCB bending but also helps distribute heat from the power components, enhancing cooling efficiency.

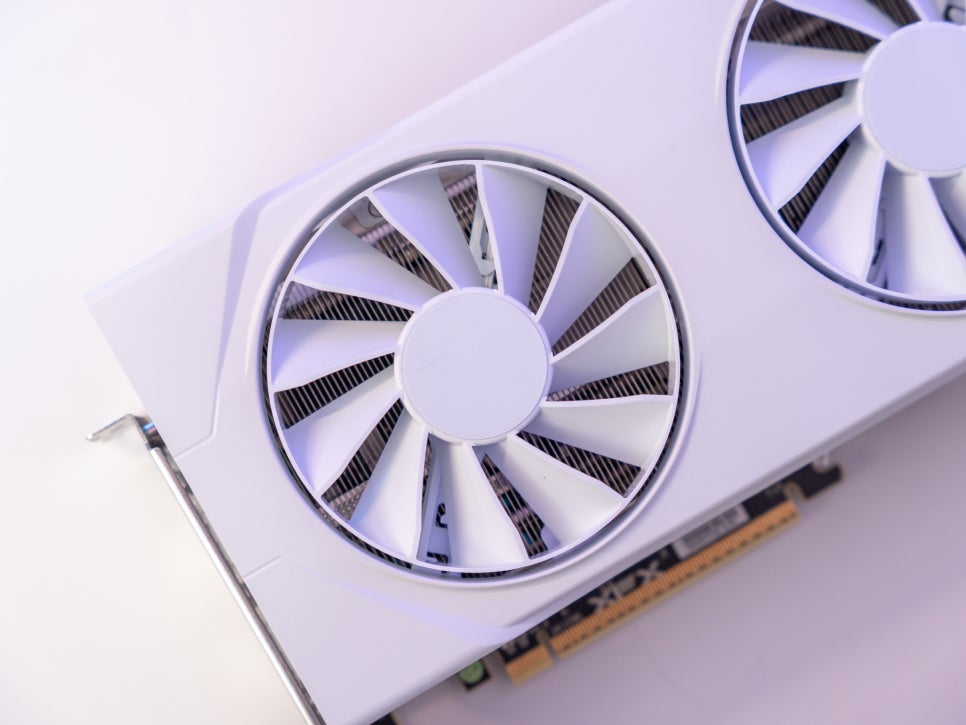

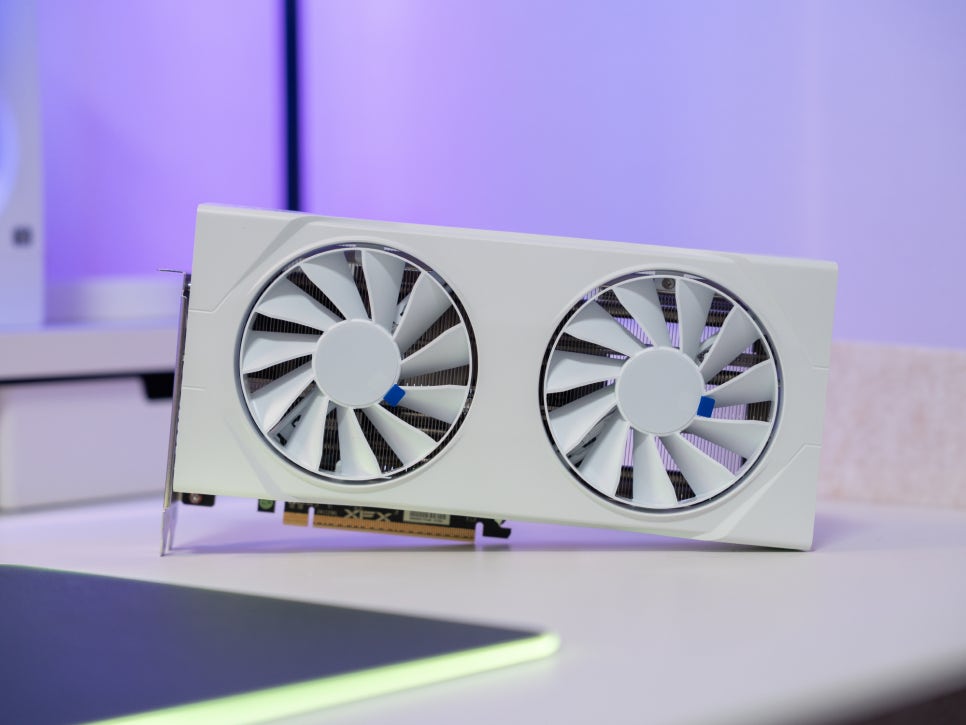

The cooling system consists of dual fans, each designed with 11 blades to optimize airflow and maximize heat dissipation. The Zero dB technology ensures a silent environment by stopping the fans completely during low-load tasks like web browsing or document work.
Additionally, high-quality bearings and a dedicated heat sink design maintain stable cooling performance during extended high-load gaming or rendering tasks. The fan speed adjusts automatically based on temperature, balancing efficient cooling and noise suppression.

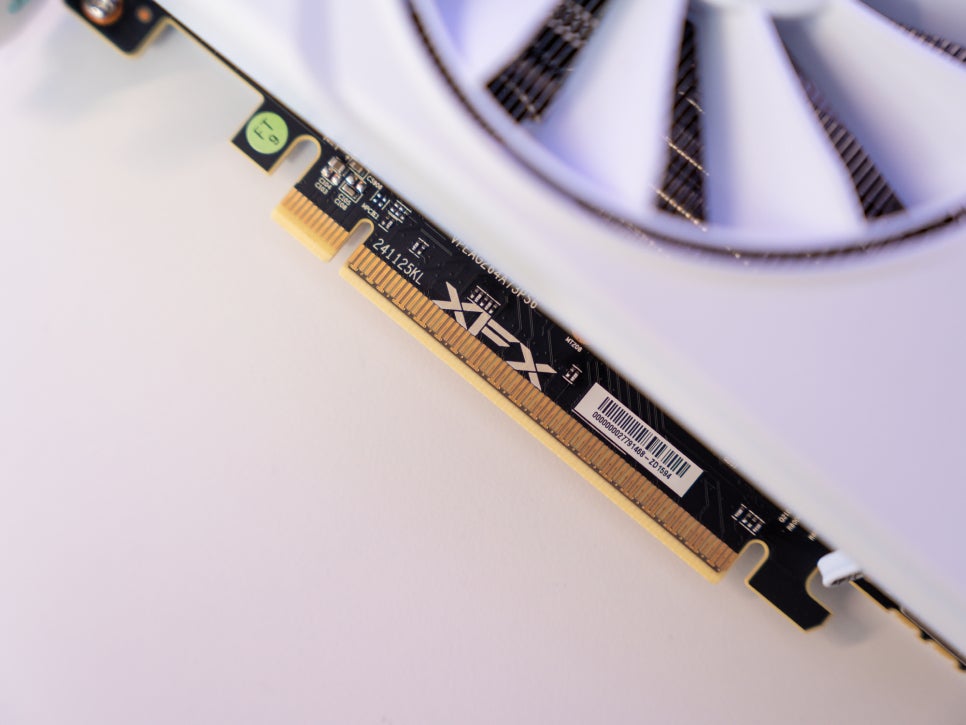

Fully supporting the PCIe 5.0 x16 interface, it pairs perfectly with the latest motherboards. AMD has reintroduced the full x16 PCIe configuration in the RX 9060 XT, offering performance benefits even in older systems with limited PCIe 4.0 and 5.0 support. This means sufficient bandwidth is available even in older systems using PCIe 3.0 slots.

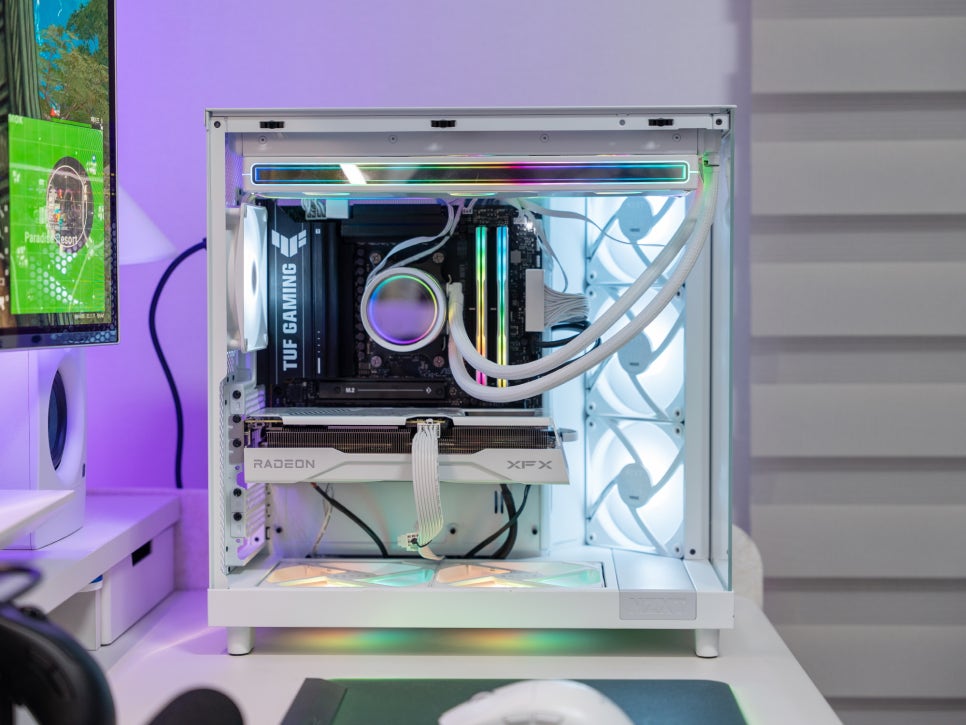

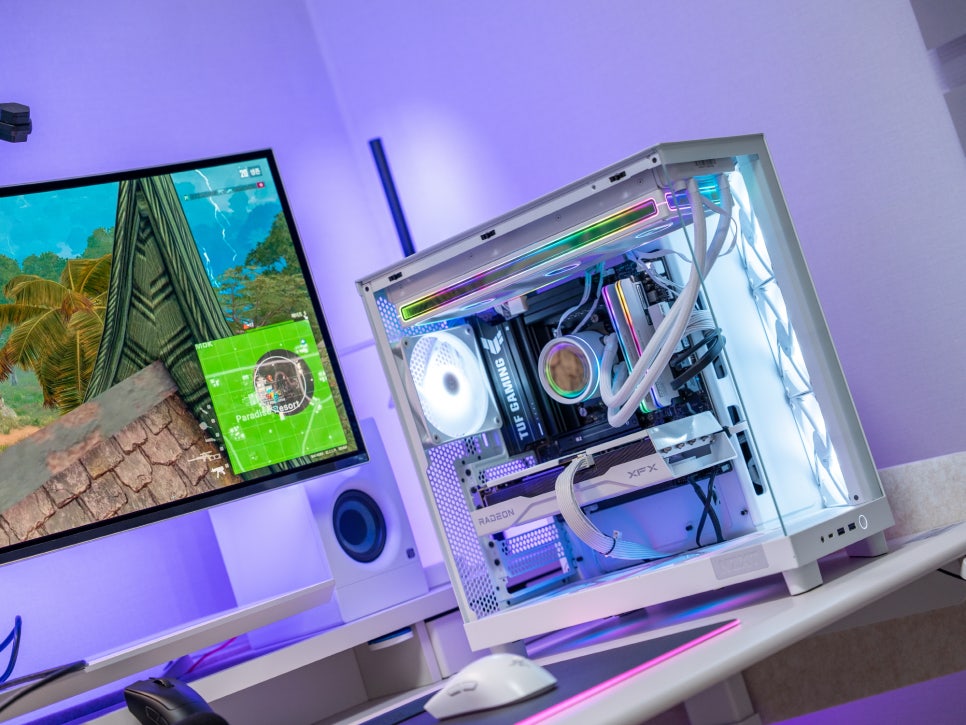

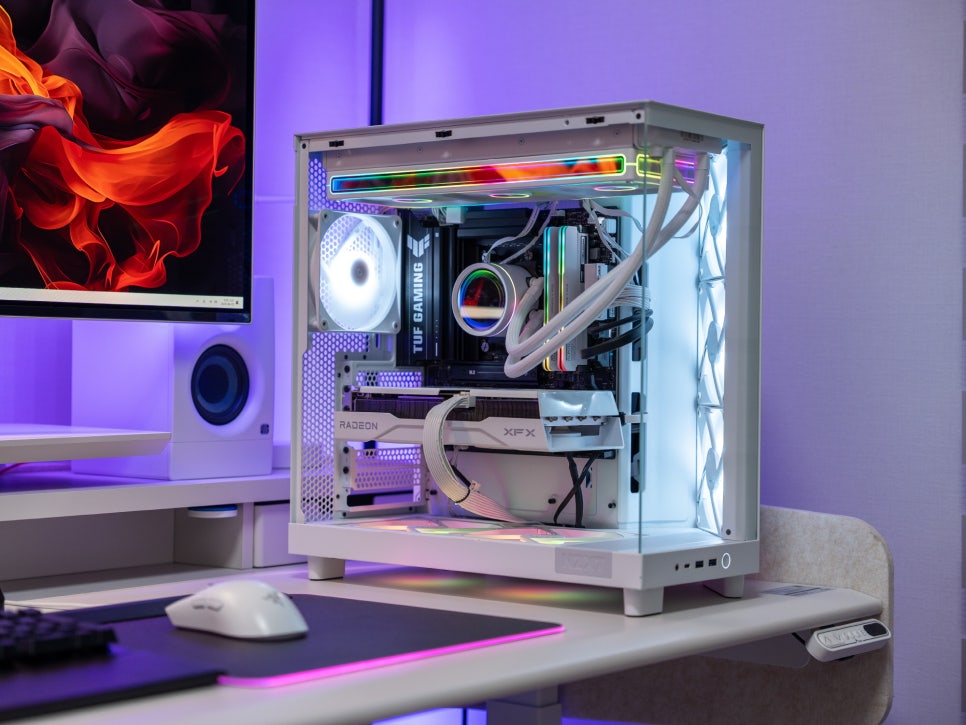

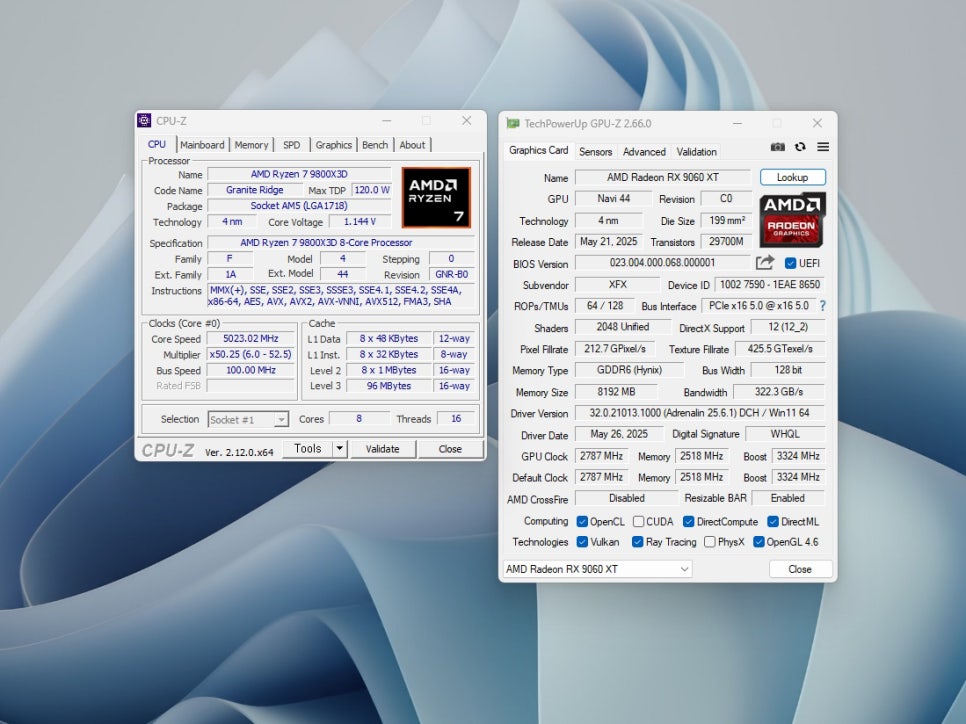

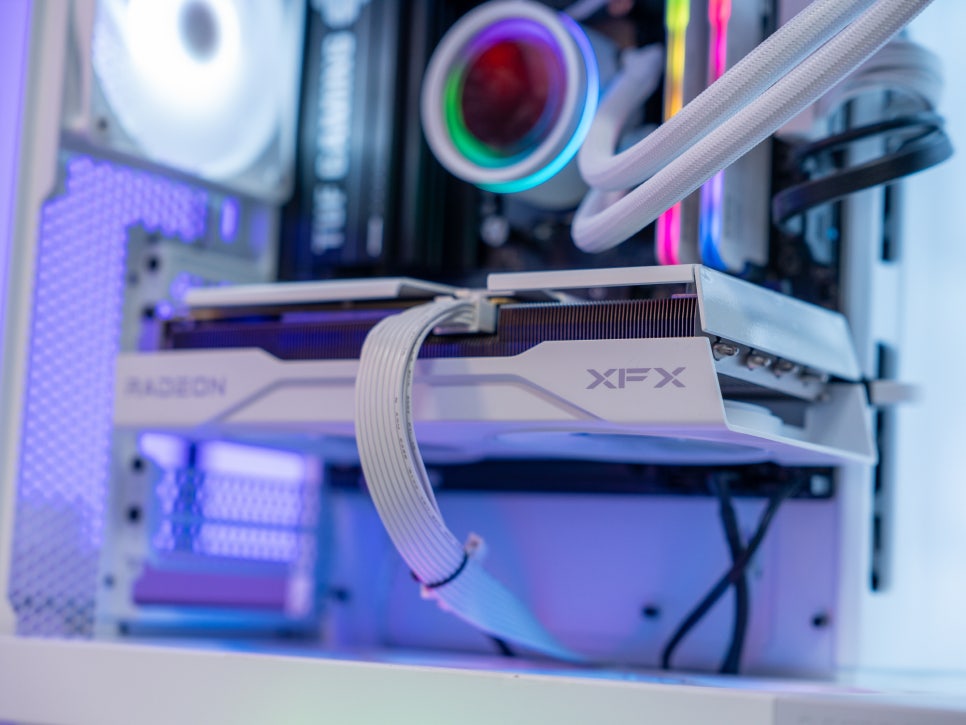

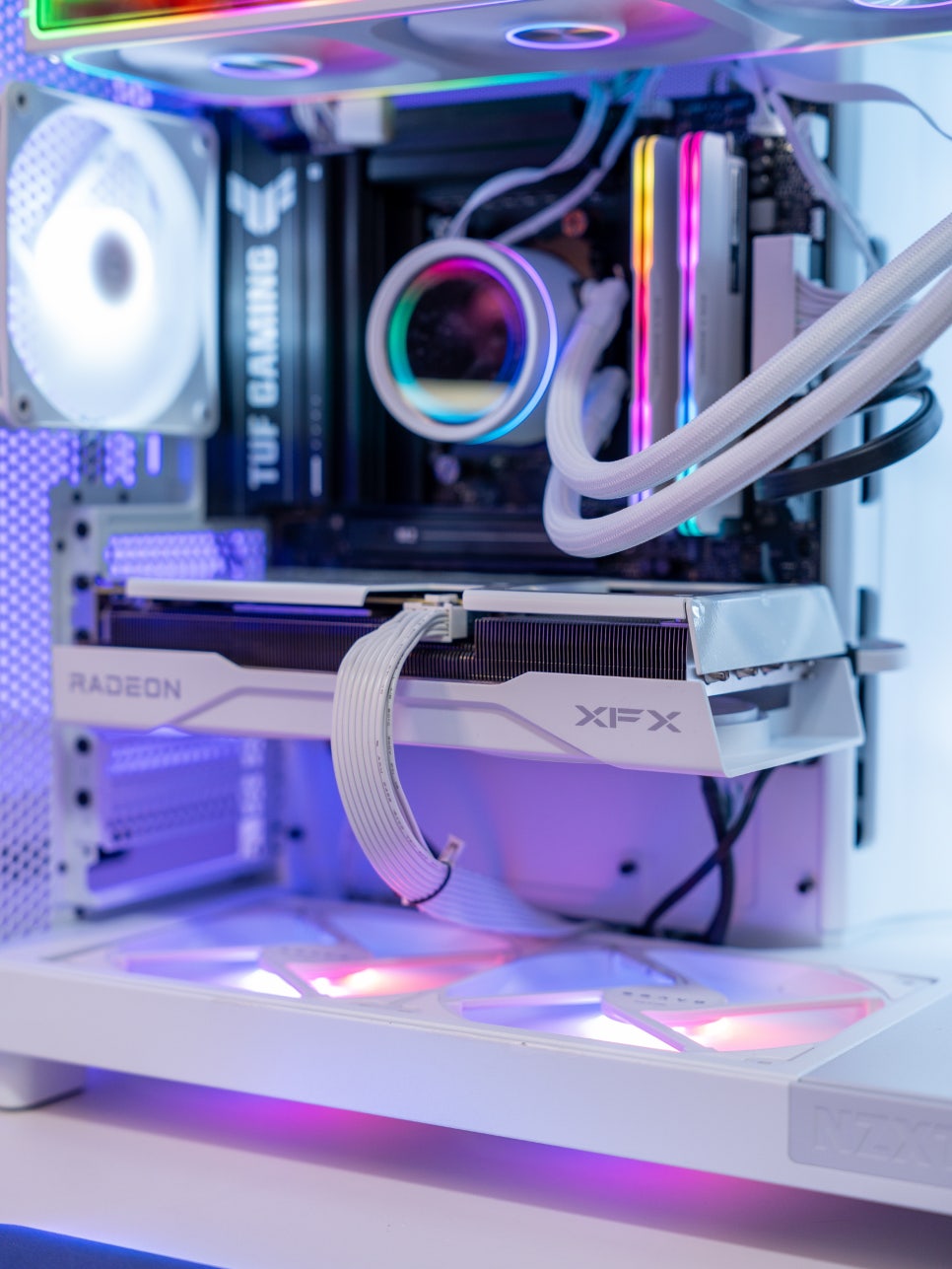

System Configuration
The test system for benchmarking is as follows:
CPU: AMD Ryzen 7 9800X3D
Motherboard: ASUS TUF Gaming B850M-PLUS WIFI
Memory: ESSENCORE KLEVV DDR5-6400 CL32D URBANE V RGB 32GB
SSD: Lexar NM790 2TB
Power Supply: ABKO ULTIMATE GX850 80PLUS GOLD Full Modular
Operating System: Windows 11 Pro 23H2
Benchmarking
3DMark Comprehensive Performance Test

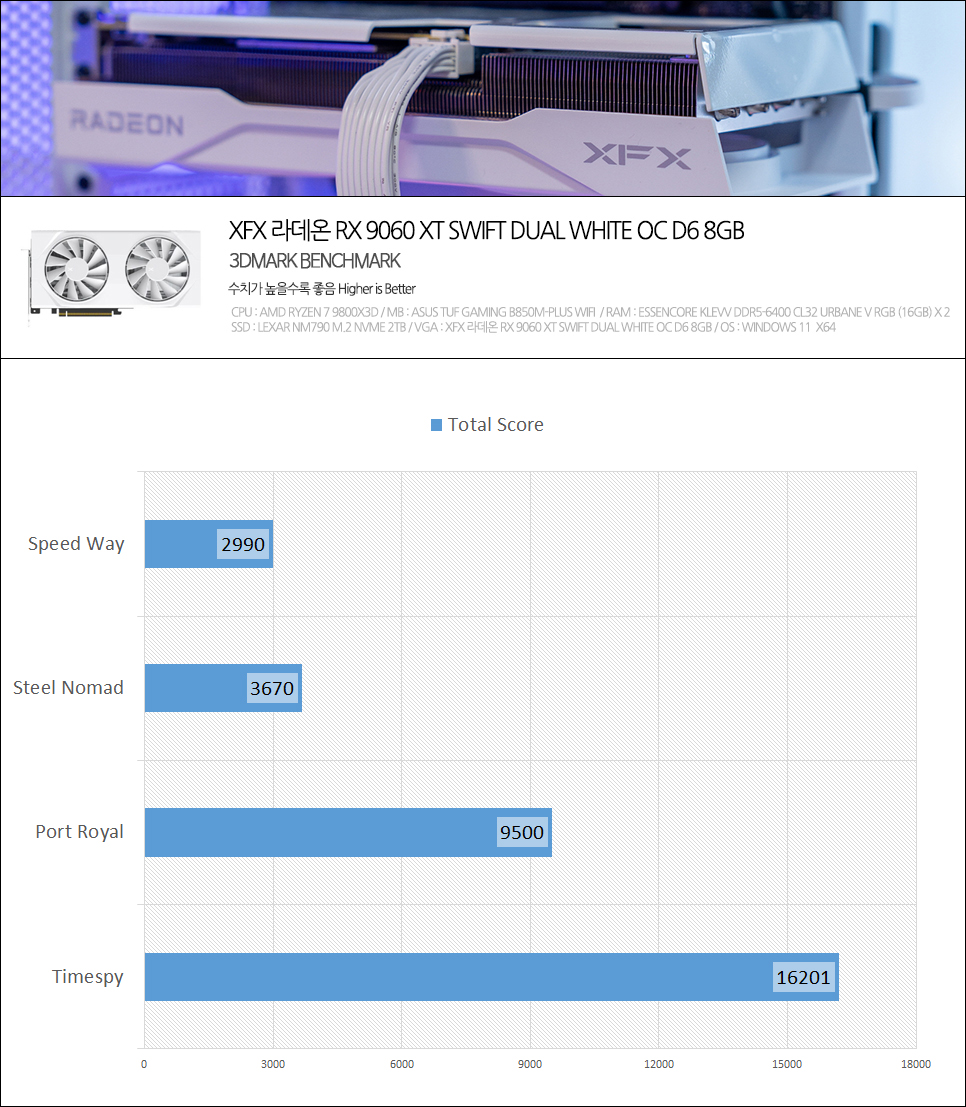

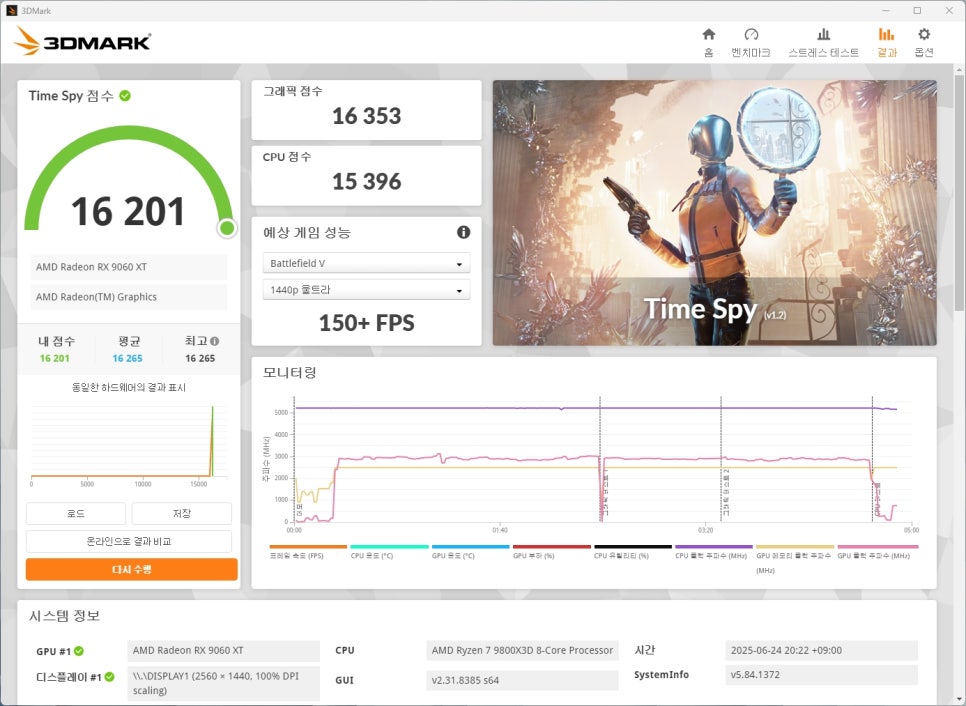

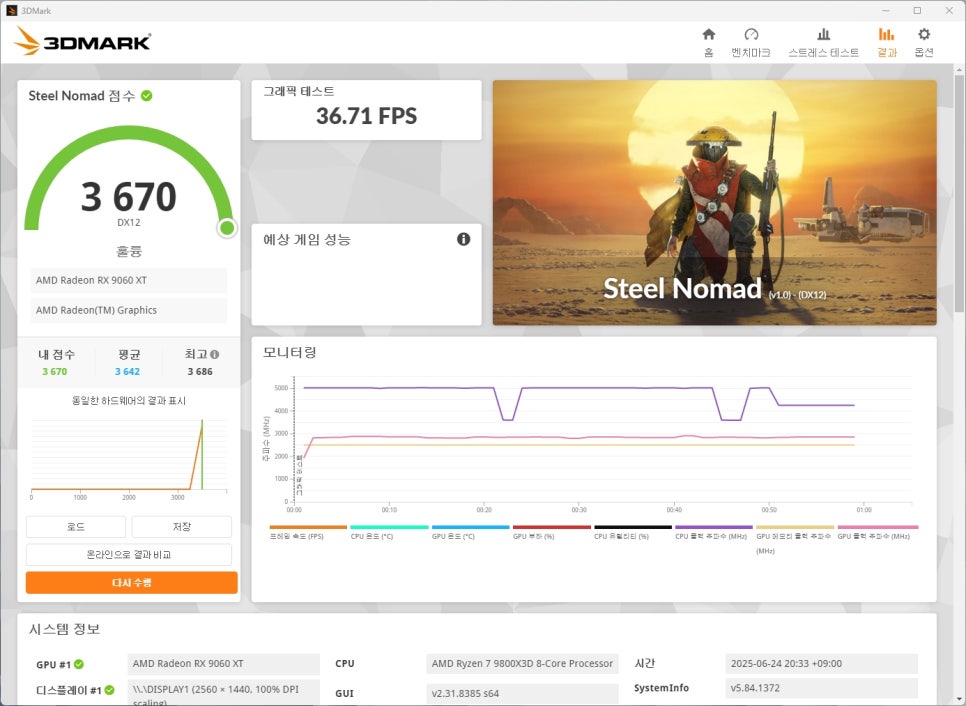

Using the 3DMark benchmark, various graphics performances were measured. In Time Spy, a representative benchmark for gaming performance at QHD resolution, the RX 9060 XT showed outstanding results, with up to 31% faster computational performance compared to the previous generation RX 7600 XT. It also demonstrated high performance in Steel Nomad and Speed Way, and notably, ray tracing performance in the Port Royal benchmark was about twice as improved compared to the previous generation.

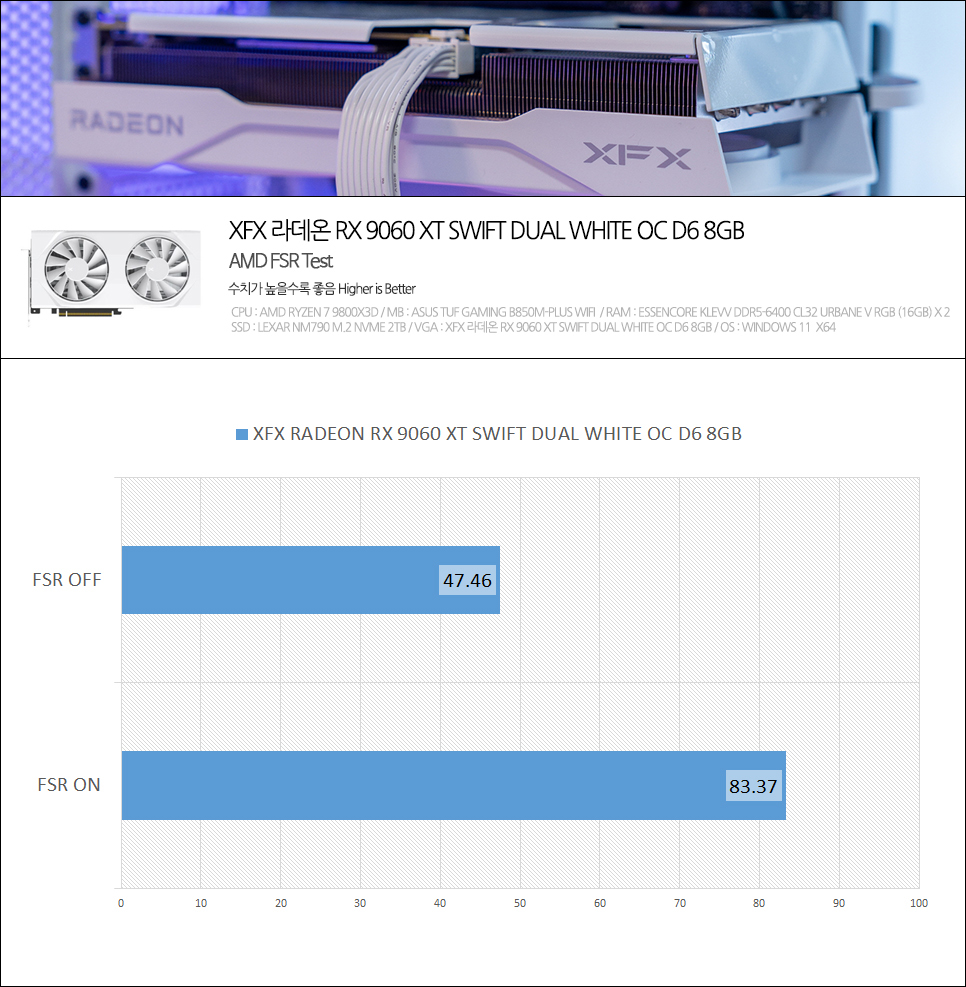

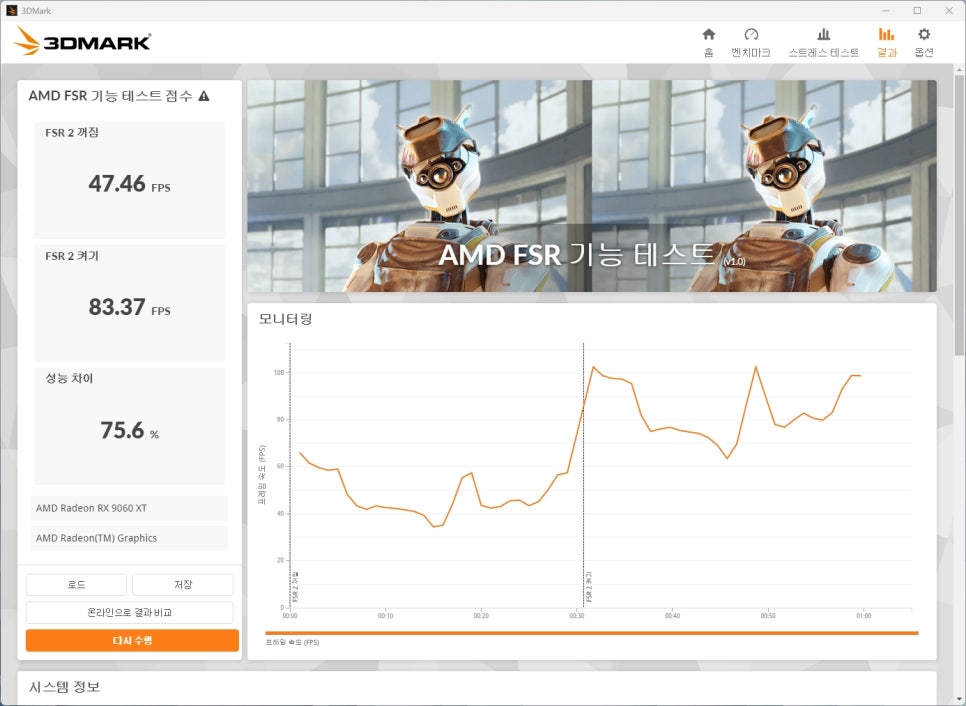

AMD FidelityFX Super Resolution 4 (FSR 4), a core technology of Radeon graphics cards, offers significant game frame improvements through AI-based upscaling. With next-generation ray tracing and AMD FSR 4-based upscaling, it allows for high-resolution gaming while maintaining frame rates. Test results showed an average performance improvement of 75.6% when the FSR 4 feature was enabled.
Game Performance Test
Using four games, we tested actual gaming performance by changing graphics settings at FHD, QHD, and UHD resolutions. Without FSR 4 enabled, games can be played at over 60 frames even at medium settings in UHD resolution.
Enabling the frame generation feature at UHD resolution and ultra preset increases the average frame rate by about 68.23% to 70.49 frames, allowing for smooth gameplay. Now, mainstream graphics cards can handle AAA titles at 4K resolution.
In the PUBG test, the RX 9060 XT showed excellent performance not only at FHD resolution but also in QHD and UHD (4K) environments. By adjusting the graphics options appropriately, smooth gameplay at over 120Hz is possible even at high resolutions. Particularly in QHD, stable 144Hz gameplay is achievable with slight compromises on some ultra settings, and in UHD, a combination of medium to high settings maintains smooth frames.

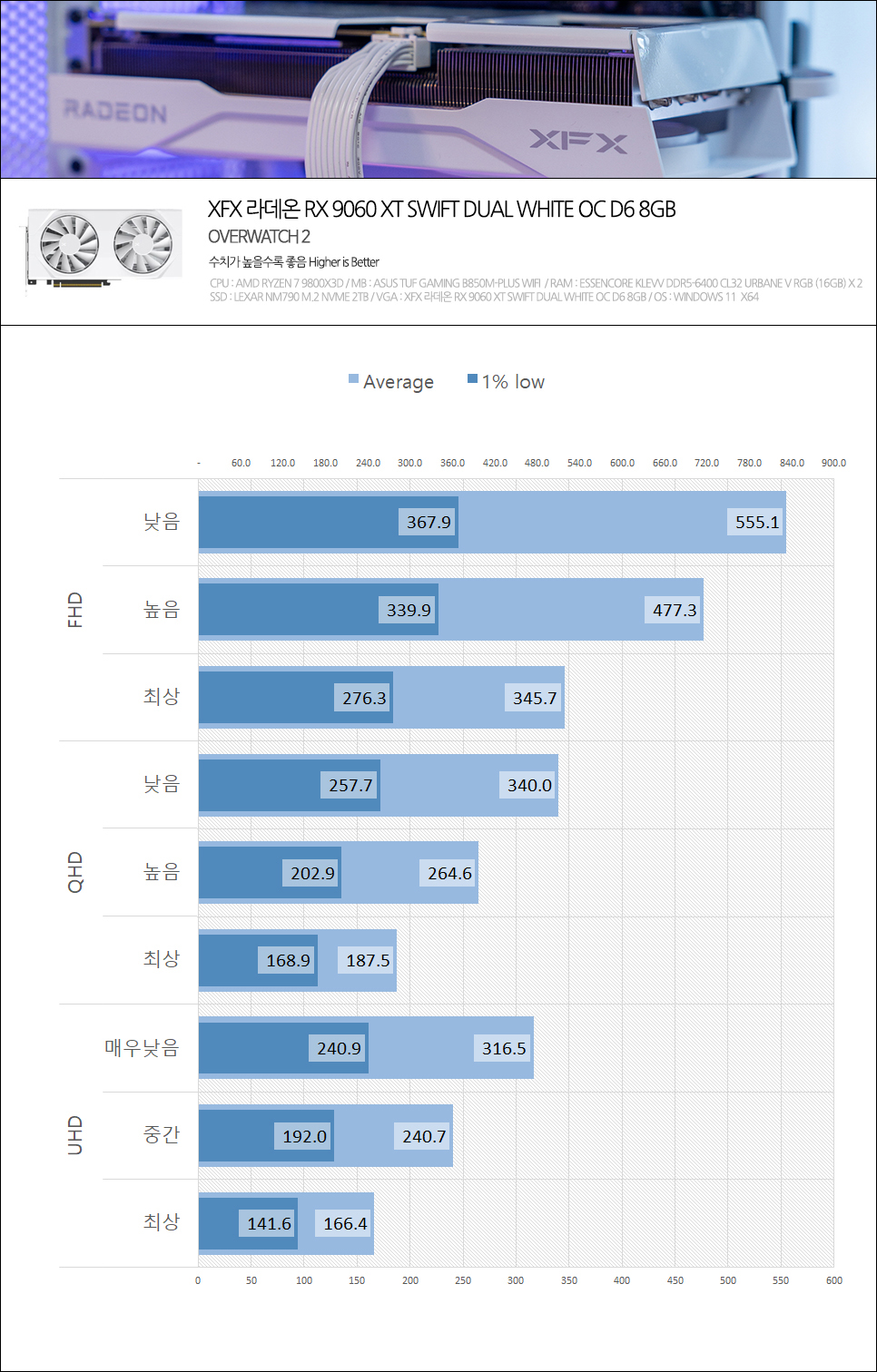

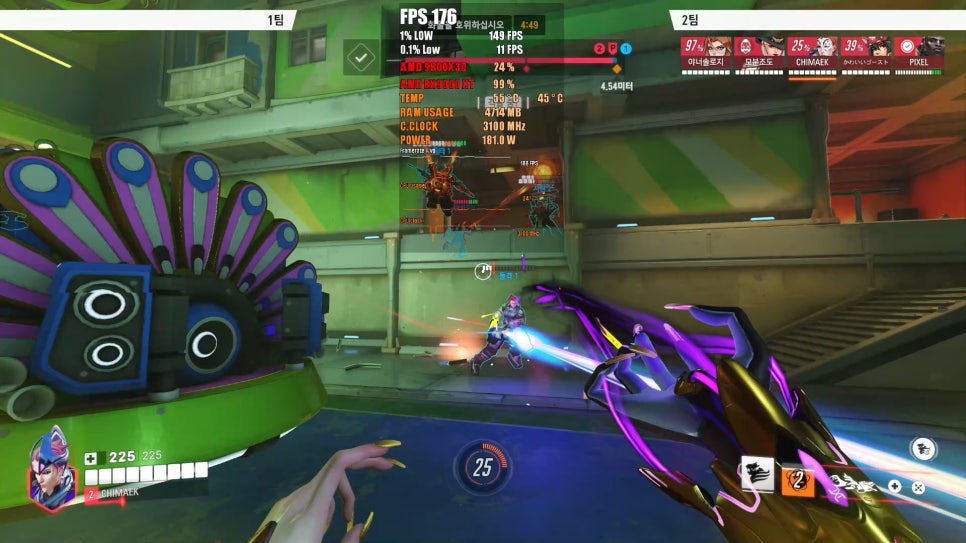

Similarly, in Overwatch 2, the XFX Radeon RX 9060 XT SWIFT DUAL WHITE OC D6 8GB delivers performance that allows for smooth gameplay on high refresh rate gaming monitors at QHD and UHD resolutions.

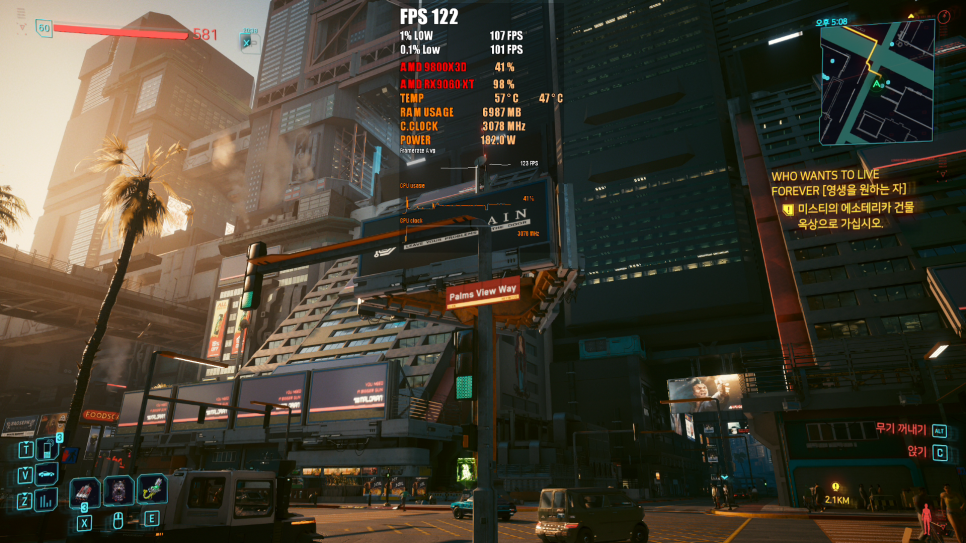

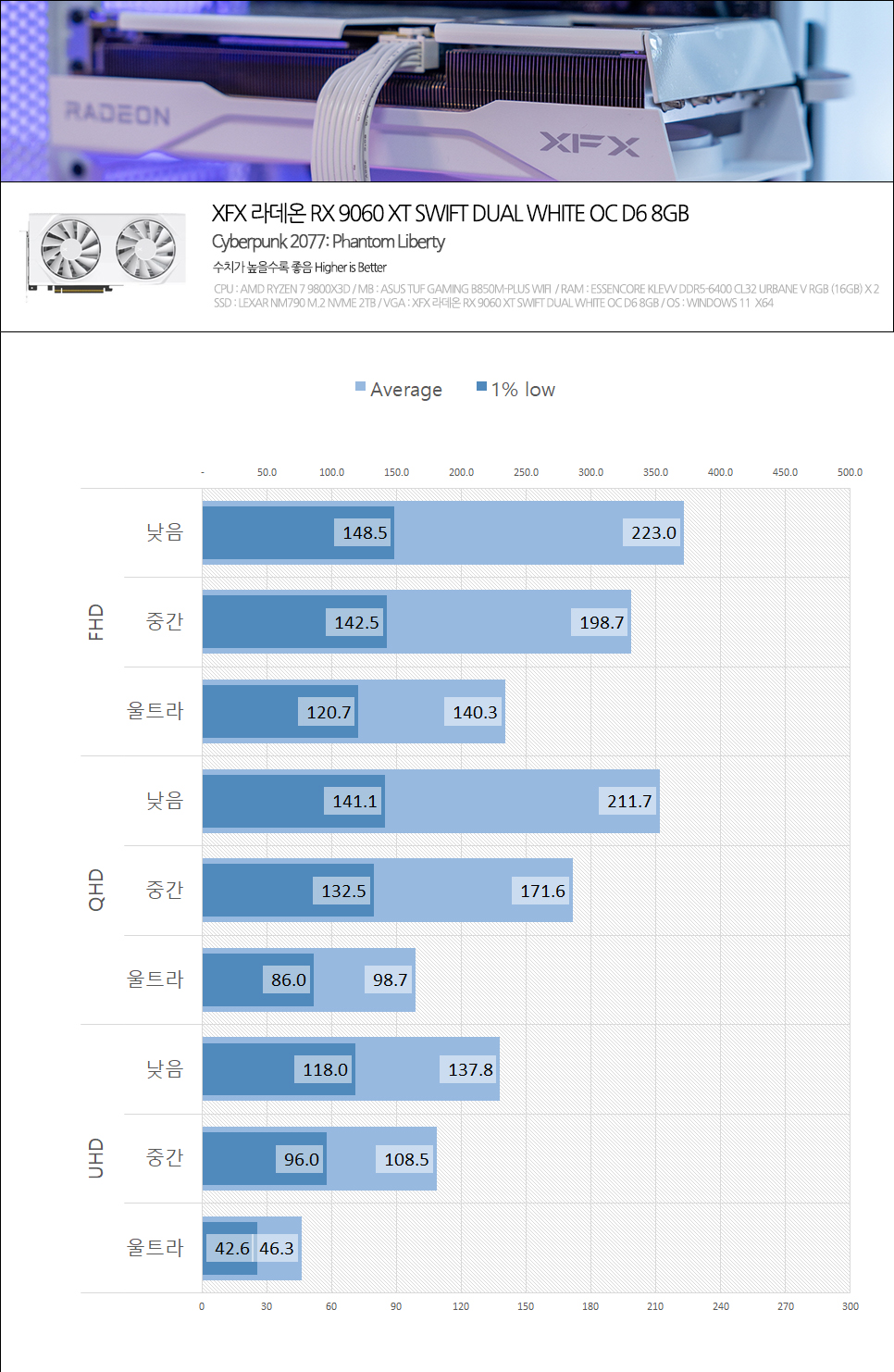

In the Cyberpunk 2077 Liberty test, the RX 9060 XT provides very smooth and comfortable frames at FHD resolution, and with appropriate graphics adjustments, it offers sufficient performance for gaming on high refresh rate monitors in QHD environments. By compromising on some ray tracing settings or utilizing upscaling technologies like FSR, stable frames can be maintained even in complex urban areas or intense combat situations.
Overall, the RX 9060 XT allows for comfortable gaming at maximum settings in FHD resolution and shows stable performance above 60fps at high settings in QHD resolution.
Temperature Test

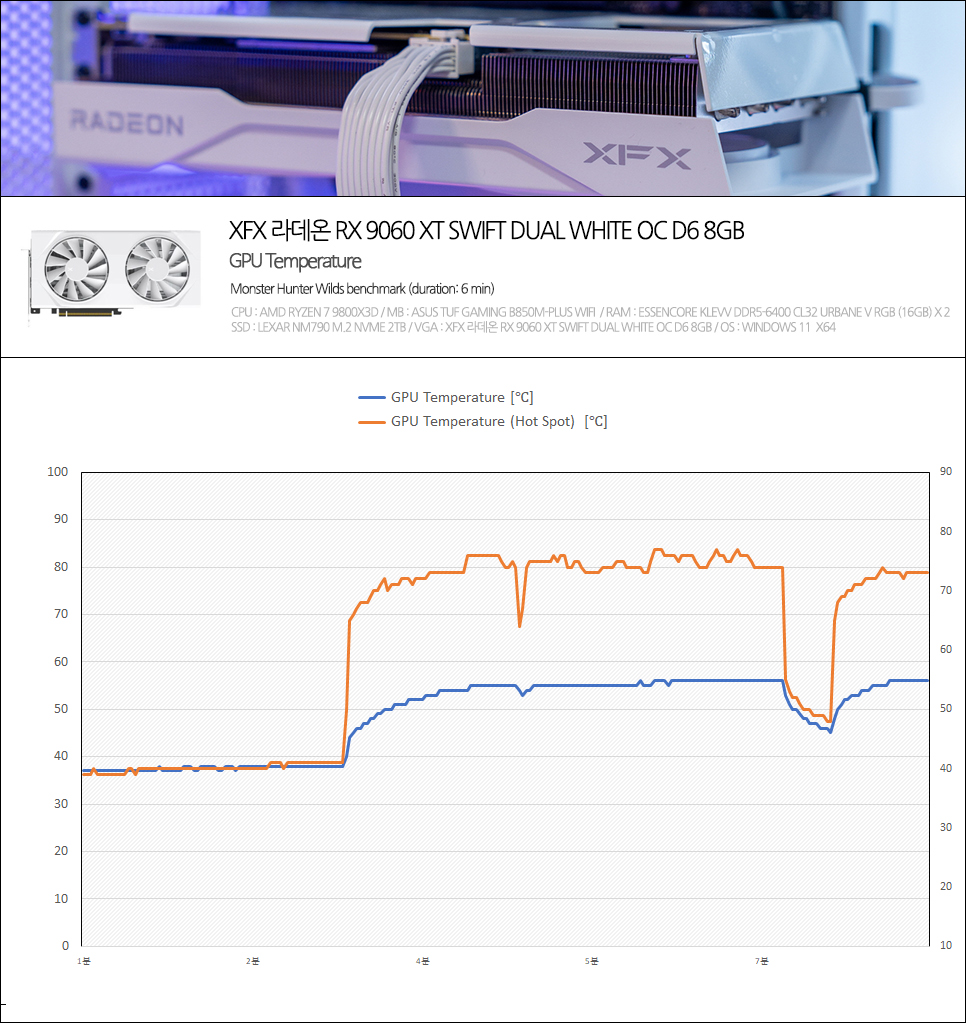

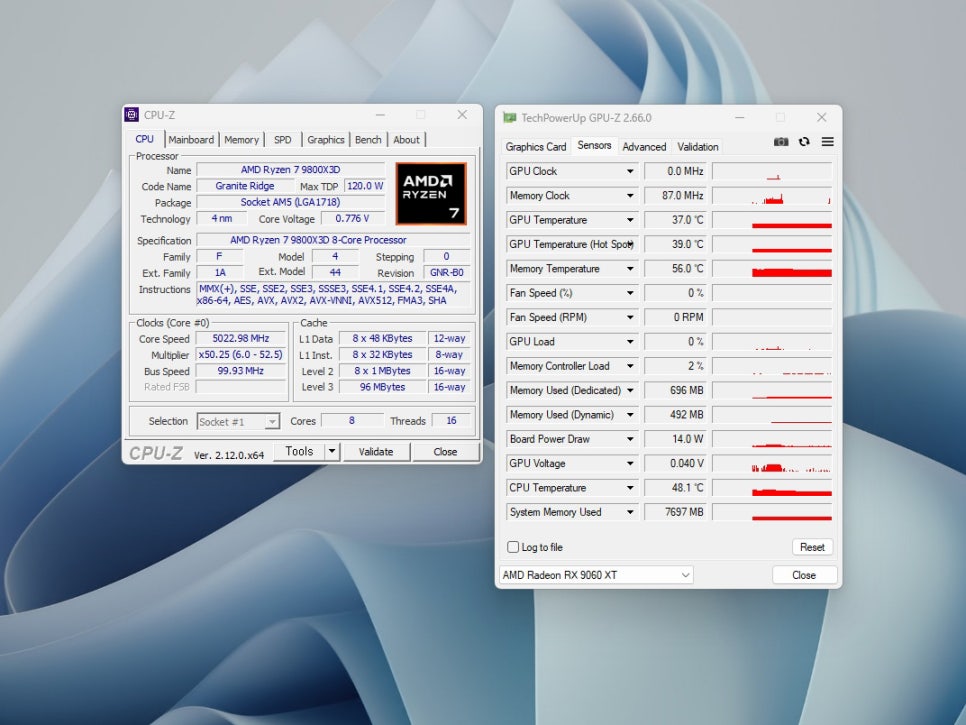

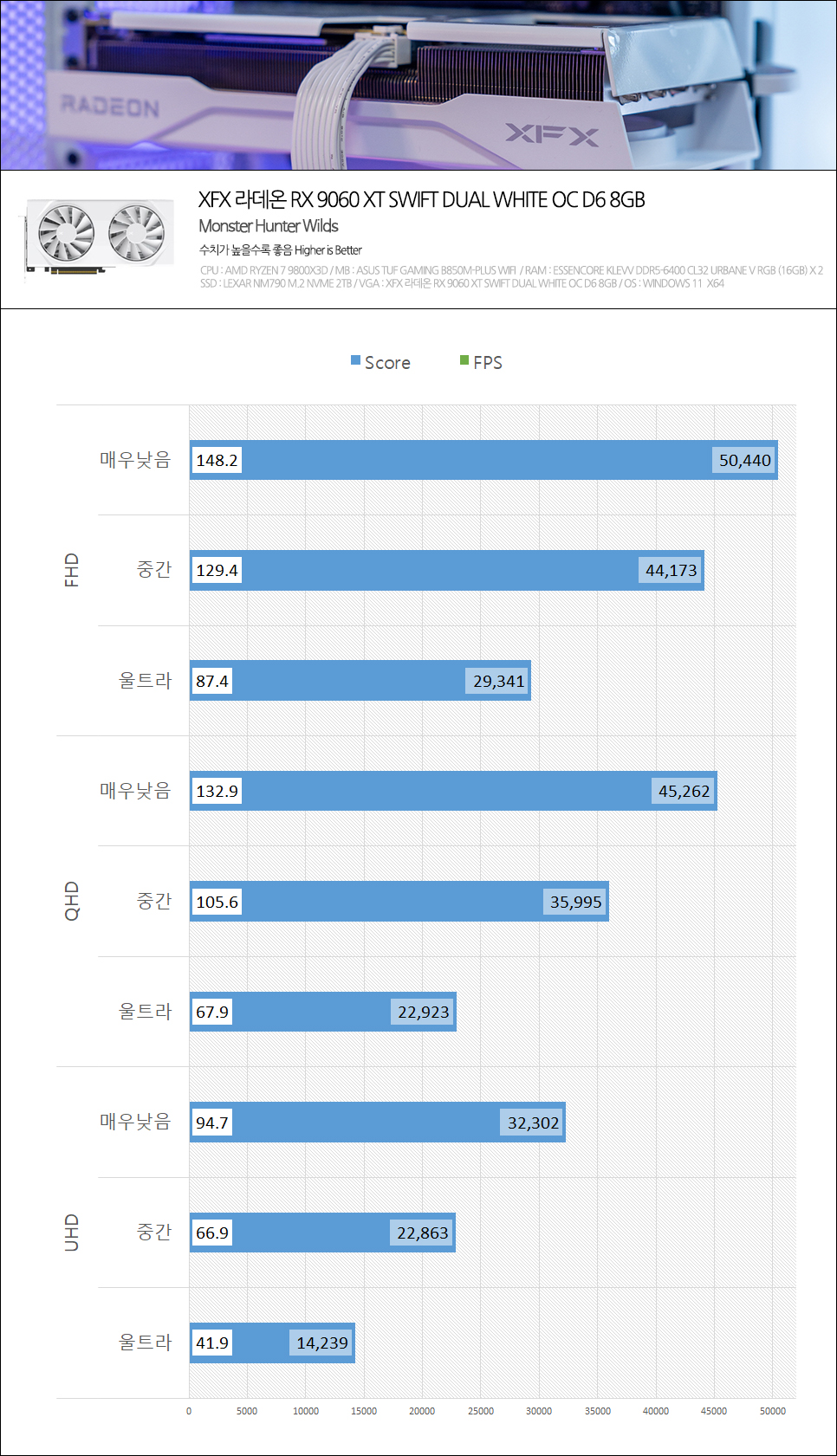

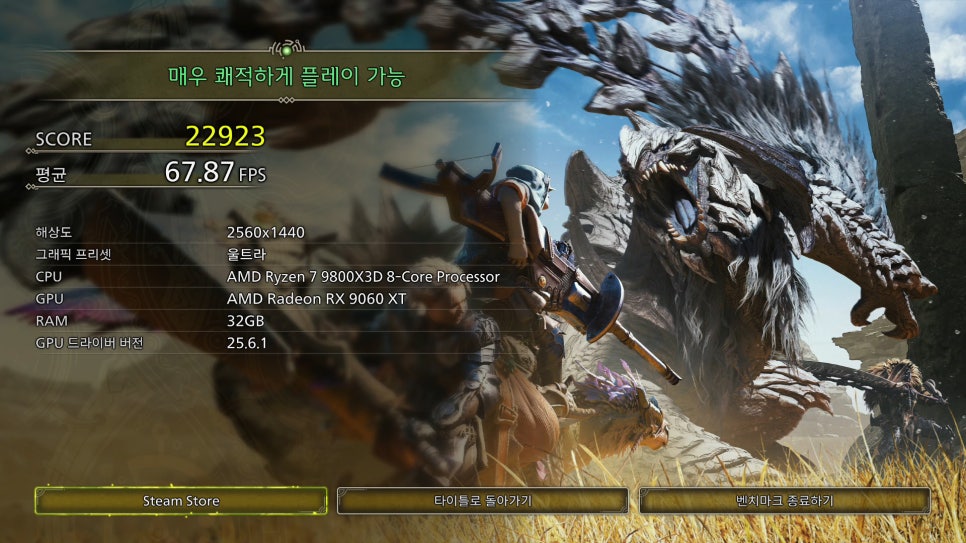

To test thermal management performance, we conducted a temperature test using the Monster Hunter Wilds benchmark. The idle state maintained around 37°C, and during gaming at QHD resolution, the GPU temperature was measured at 56-57°C, with hotspot temperatures around 80-82°C.
The XFX SWIFT DUAL cooling system’s performance is excellent, as it keeps the GPU core temperature below 60°C even under heavy load, demonstrating outstanding heat dissipation performance. The hotspot temperature remains in the low 80s, ensuring stable performance without throttling concerns even during extended gaming sessions.
Conclusion
The XFX Radeon RX 9060 XT SWIFT DUAL WHITE OC D6 8GB is a mainstream lineup product that shows quite well-balanced completeness.
First, it launches at a reasonable price point of 400,000-500,000 won, giving it a price advantage over competing products. Some test results show excellent performance, so this aspect seems to be the biggest advantage. The excellent power efficiency particularly allows operation with a 450W power supply, eliminating the need to unnecessarily upgrade or replace with a high-spec power supply.

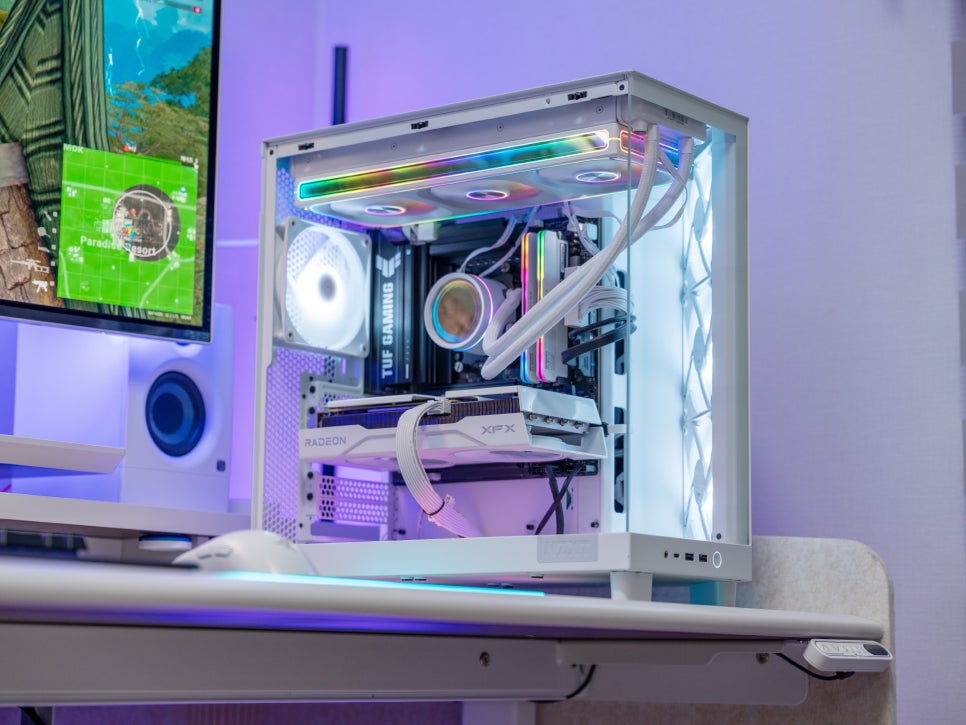

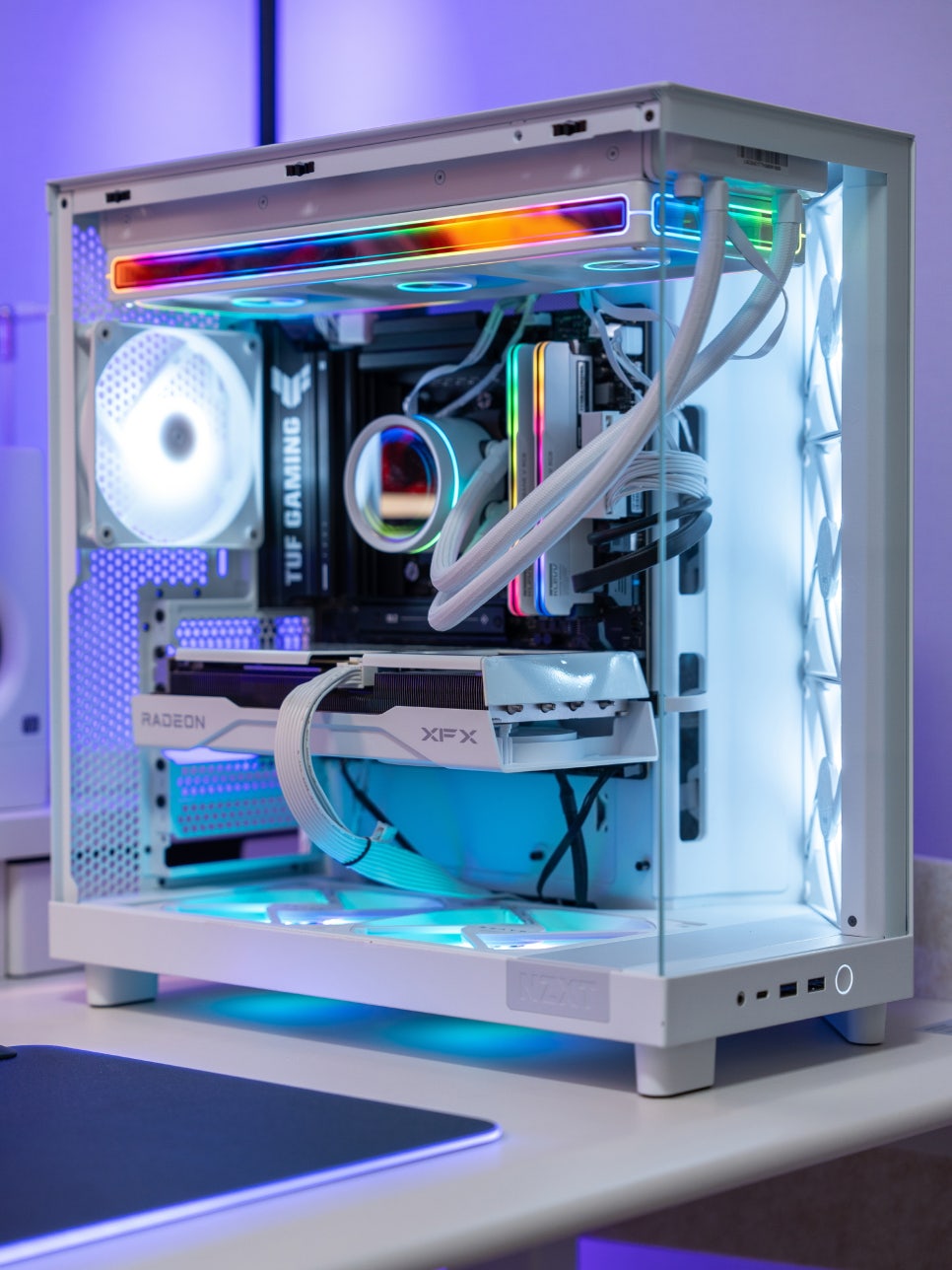

Additionally, the clean pure white design perfectly matches white-themed systems. Combined with its compact size, it would be a great item for those building SFF systems or clean white-toned mini PCs.
